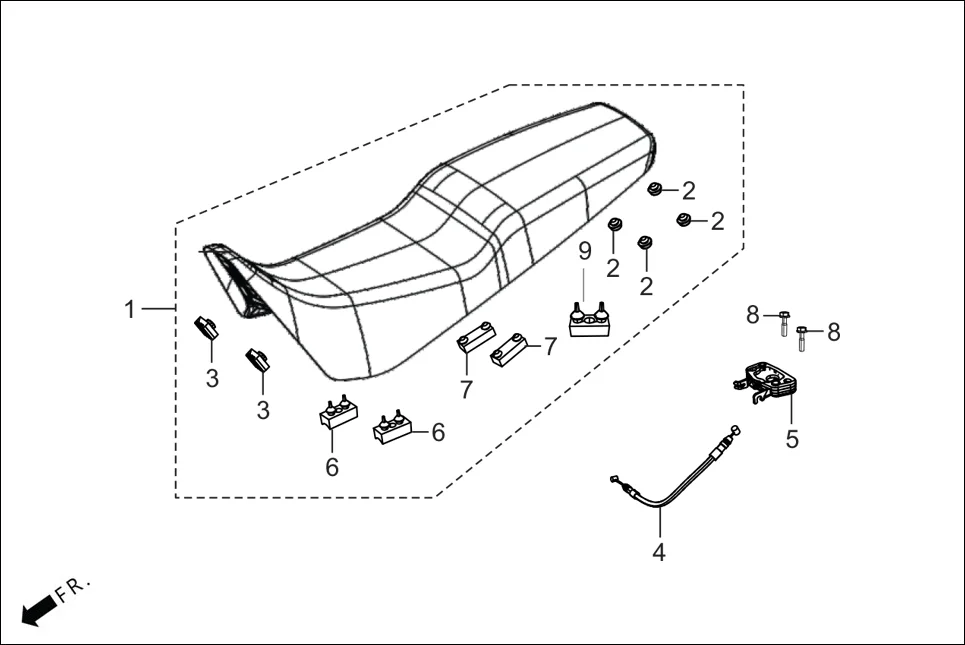

F-12A - SEAT ASSY.
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-ACY-110 | SEAT ASSY COMP | 1 | |
| 2 | 50354-428-000 | STOPPER,RUBBERB | 4 | |
| 3 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 2 | |
| 4 | 77156-ACY-100 | CABLE SEAT LOCK | 1 | |
| 5 | 77170-ACF-000 | BRKT D COMP SEAT LOCK | 1 | |
| 6 | 77204-AAR-000 | CUSHION RUBBER RIDER SEAT | 2 | |
| 7 | 77205-KTN-700 | RUBBER B, SEAT SETTING | 2 | |
| 8 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 9 | 77204-ACD-000 | CUSHION RUBBER SEAT | 1 | |
