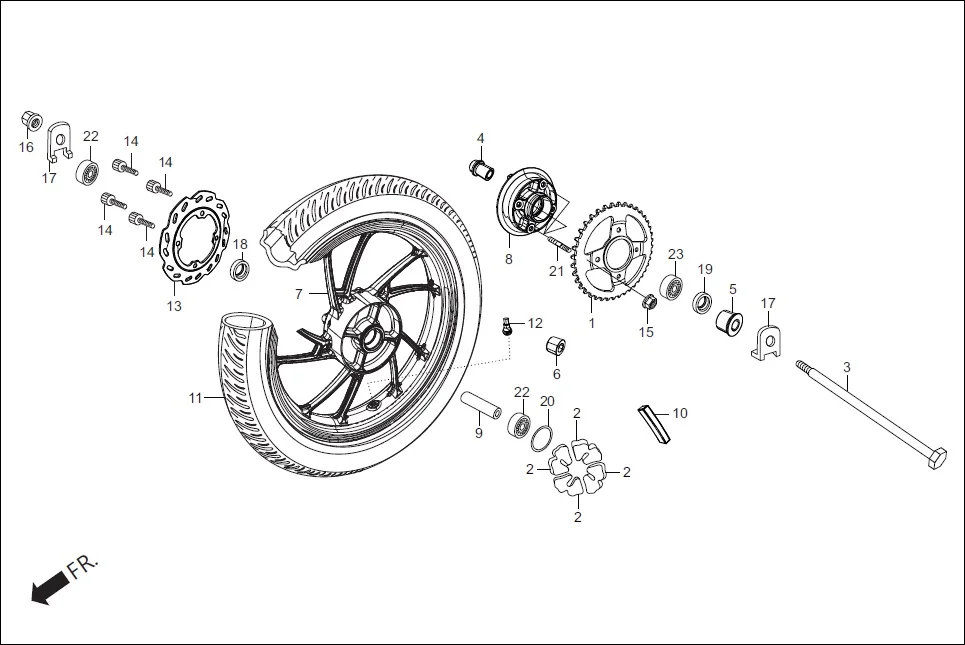

F-9 - RR WHEEL / FLANGE ASSY. DRIVEN
Hero Xpulse 200T FI BSVI (Feb, 2021) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 41201-AAB-A00 | SPROCKET FINAL DRIVEN 37T | 1 | |
| 2 | 41241-KSP-900 | DAMPER, RR WHEEL | 4 | |
| 3 | 42301-AAB-A00 | AXLE RR WHEEL | 1 | |
| 4 | 42303-AAB-A00 | SLEEVE REAR WHEEL | 1 | |
| 5 | 42311-AAB-A00 | COLLAR RR WHEEL SIDE(LH) | 1 | |
| 6 | 42313-KRY-970 | COLLAR RR. BRAKE SIDE | 1 | |
| 7 | K42426AABMA00S | KIT, WHEEL COMP. REAR | 1 | |
| 8 | 42611-KRY-930 | FLANGE, FINAL DRIVEN(NH-35M) | 1 | |
| 9 | 42620-AAR-000 | COLLAR RR AXLE DISTANCE | 1 | |
| 11 | 42711-AAB-A01 | TYRE, RR (MRF) | 1 | |
| 13 | 43251-ABZ-010 | DISC, RR BRAKE | 1 | |
| 15 | 90304-KCS-920 | NUT`U 10 MM | 4 | |
| 16 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 17 | 90560-KVE-900 | WASHER, R RR. AXLE | 2 | |
| 18 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 19 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 20 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 21 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
| 22 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
