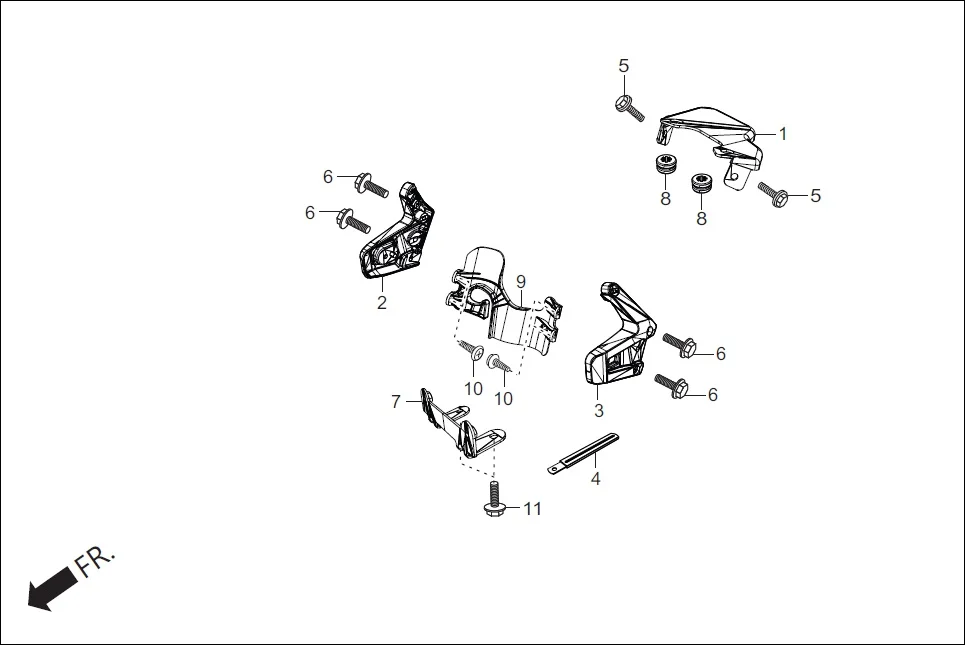

F-1A - FAIRING (FR. VISOR/COWL/STAY)
Hero Xpulse 200T FI BSVI (Feb, 2021) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61312-ABW-000 | STAY METER MTG. | 1 | |
| 2 | 61313-ABW-100 | BRACKET HEADLIGHT R | 1 | |
| 3 | 61314-ABW-100 | BRACKET HEADLIGHT L | 1 | |
| 4 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 5 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 2 | |
| 6 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
| 7 | 64315-ABW-000 | STAY FR NO PLATE | 1 | |
| 8 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 9 | 83402-ABW-000 | PANEL INNER | 1 | |
| 10 | 93500-05010-1A | SCREW, PAN, 5X10 | 4 | |
| 11 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
