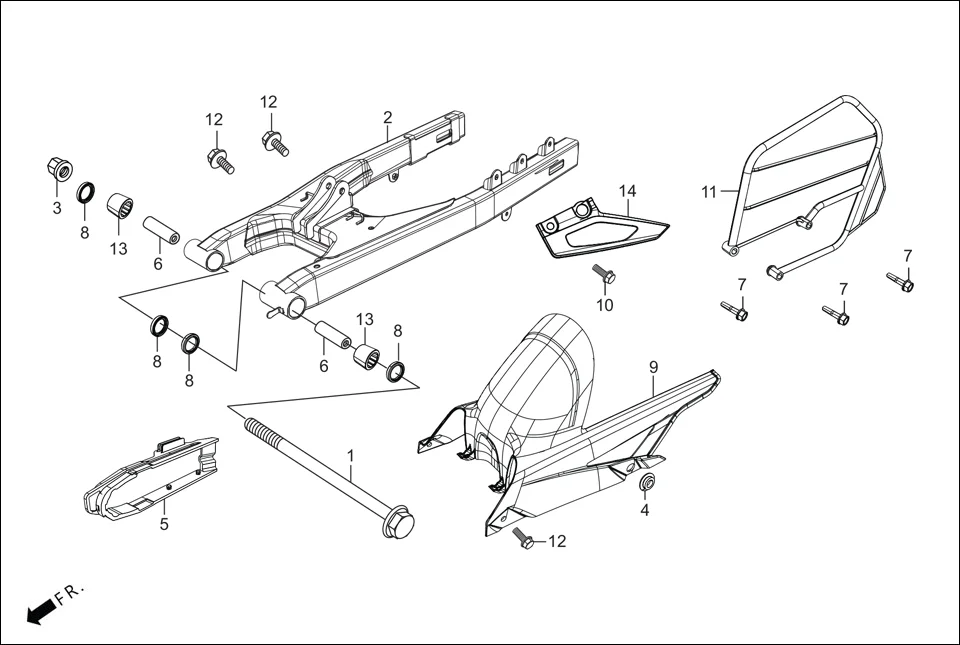

F-18A-SWINGARM / GUARD SAREE / CHAIN CASE
HeroXpulse 200T FI BSVI (Feb, 2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52101-ABW-000 | BOLT, SWINGARM PIVOT | 1 | |
| 2 | 52110-ABW-000 | SWINGARM COMP RR | 1 | |
| 3 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 4 | 90501-ABW-000 | COLLAR, CHAIN CASE | 1 | |
| 5 | 52170-AAB-A00 | SLIDER CHAIN | 1 | |
| 6 | 52143-KVE-900 | COLLAR, PIVOT DIST L | 2 | |
| 7 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
| 8 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 4 | |
| 9 | 40510-ABW-000 | CHAIN CASE UPPER | 1 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 11 | 51103-AAB-A00 | GUARD SAREE | 1 | |
| 12 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 13 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 14 | 40550-AAB-A00 | GUARD LOWER FINAL DRIVE | 1 |
