F-1 - HEAD LIGHT

Hero Xpulse 200T FI BSVI (Feb, 2021) · 2 parts

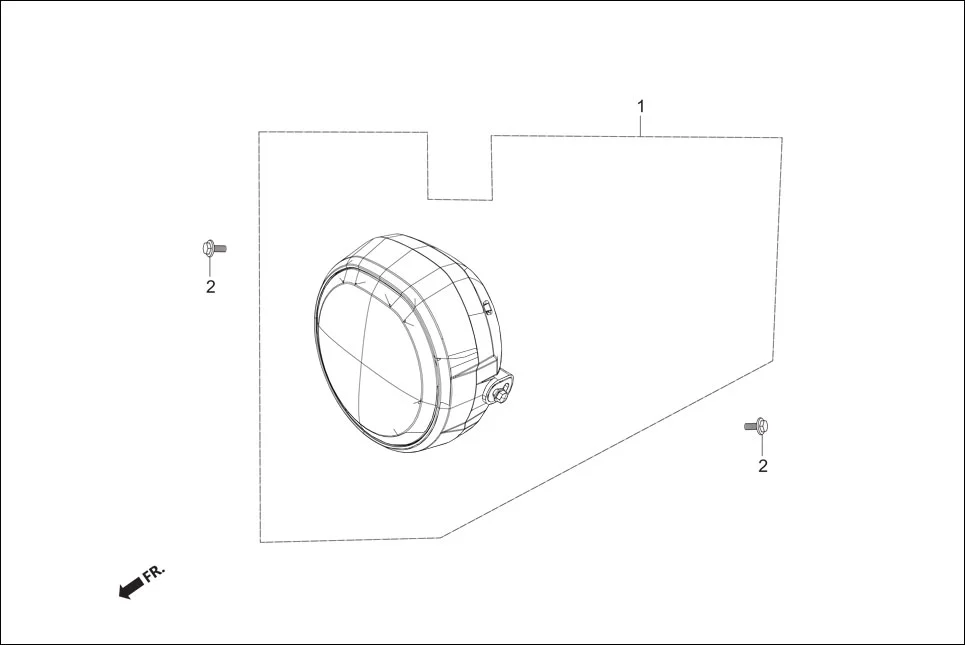

F-1 HEAD LIGHT assembly diagram for Hero Xpulse 200T FI BSVI (Feb, 2021)

Parts in This Assembly (2)

Ref # Part Number Description Qty
1 3310B-ABW-201 LIGHT ASSY HEAD 1
2 95701-06014-00 BOLT, FLANGE, 6 X 14 2
