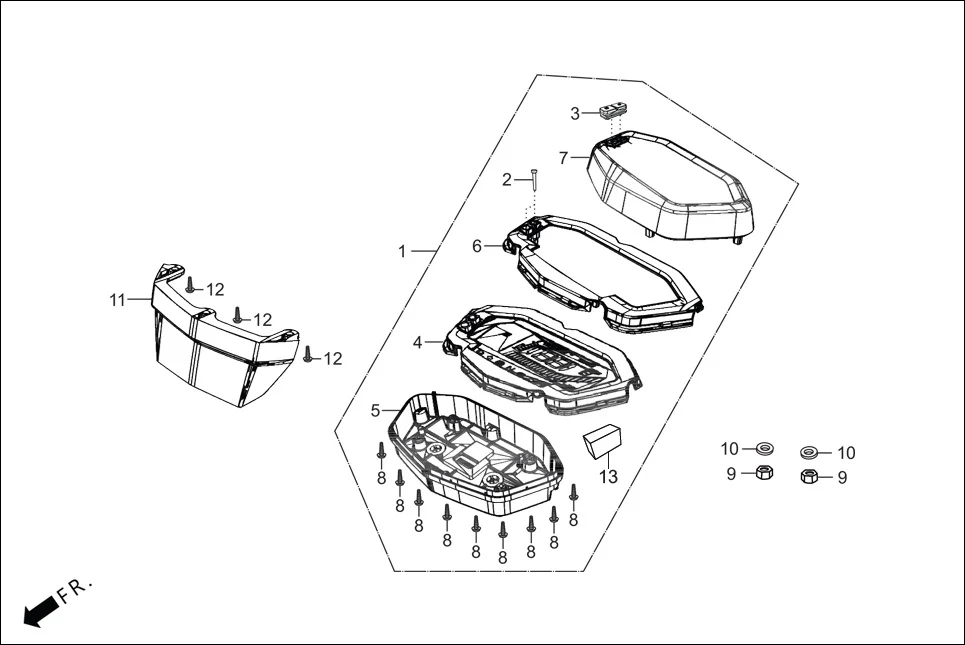

F-2 - SPEEDOMETER / CABLE
Hero Xpulse 200T 4V FI (Jan, 2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-ABW-801 | METER ASSY COMB | 1 | |
| 2 | 37202-ABW-001 | KEY TOP | 2 | |
| 3 | 37203-ABW-001 | SW RUBBER | 1 | |
| 4 | 37210-ABW-801 | SPEEDOMETER COMP | 1 | |
| 5 | 37610-ABW-001 | LOWER CASE ASSY | 1 | |
| 6 | 37611-ABW-201 | REFLECTOR ASSY | 1 | |
| 7 | 37612-ABW-001 | UPPER CASE ASSY | 1 | |
| 8 | 93903-22480 | SCREW TAPPING 3 X 16 | 9 | |
| 9 | 94001-06070-0S | NUT, HEX., 6 MM | 2 | |
| 10 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 11 | 37101-ABW-001 | COVER METER ASSY COMB | 1 | |
| 12 | 93901-22320 | SCREW TAPPING 3X12 | 3 | |
| 13 | 37620-ABW-001 | CUSHION SPEEDOMETER | 1 | |
