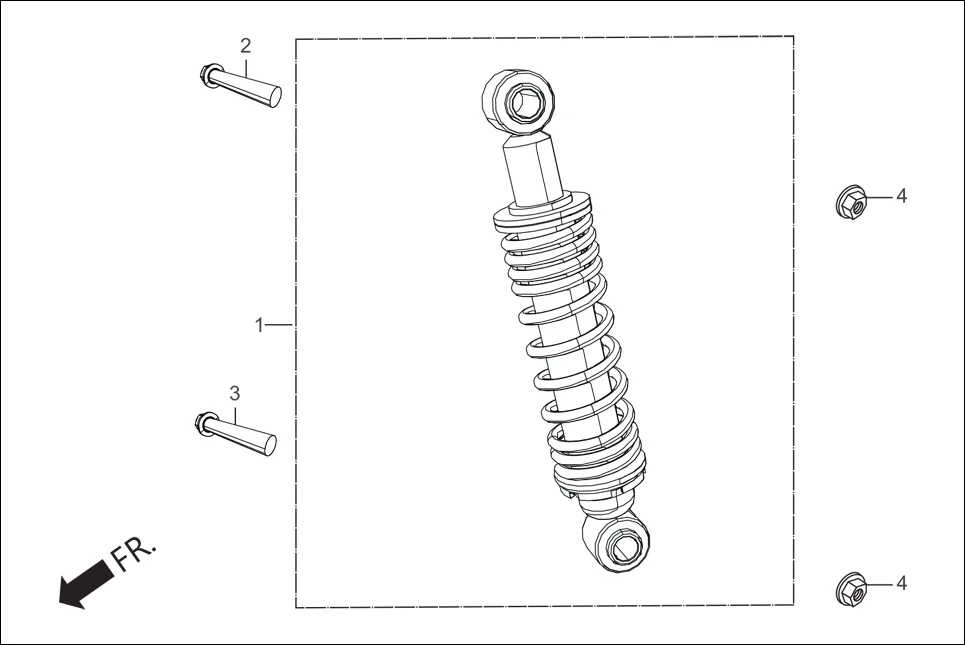

F-19 - REAR CUSHION
Hero Xpulse 200T 4V FI (Jan, 2023) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-ABW-001 | CUSHION ASSY. REAR | 1 | |
| 2 | 90151-ABW-000 | BOLT FLANGE 10X65 | 1 | |
| 3 | 90159-AAB-A00 | BOLT FLANGE 10X50 | 1 | |
| 4 | 90304-KST-942 | NUT FLG.PT 10MM | 2 | |
