F-1-HEAD LIGHT

HeroXpulse 200T 4V FI (Jan, 2023) · 2 parts

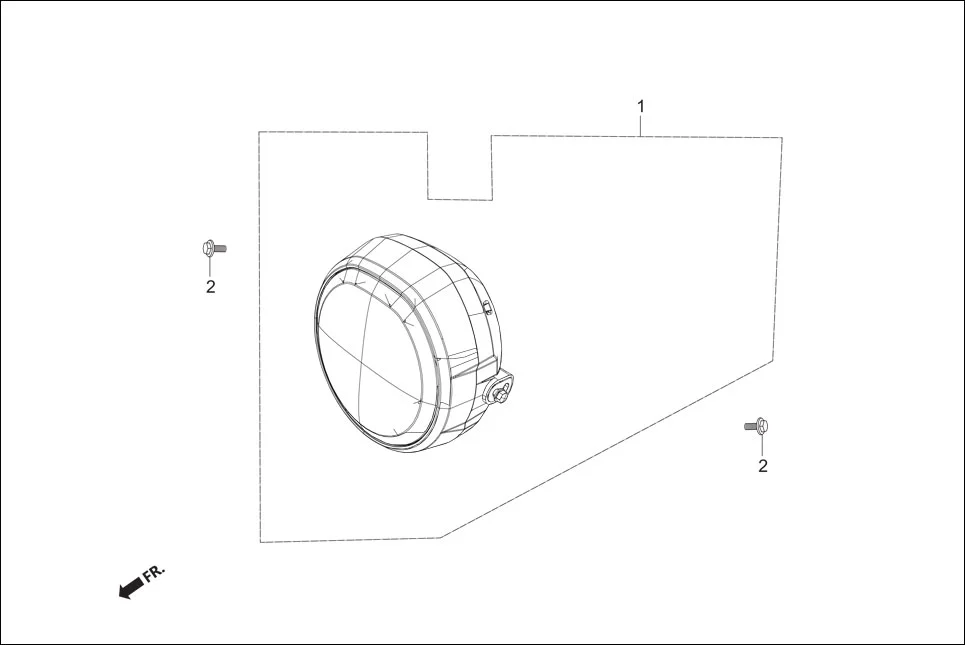

F-1 HEAD LIGHT assembly diagram for Hero Xpulse 200T 4V FI (Jan, 2023)

Parts in This Assembly (2)

Ref #Part NumberDescriptionQty
13310B-ABW-201LIGHT ASSY HEAD1
295701-06014-00BOLT, FLANGE, 6 X 142
