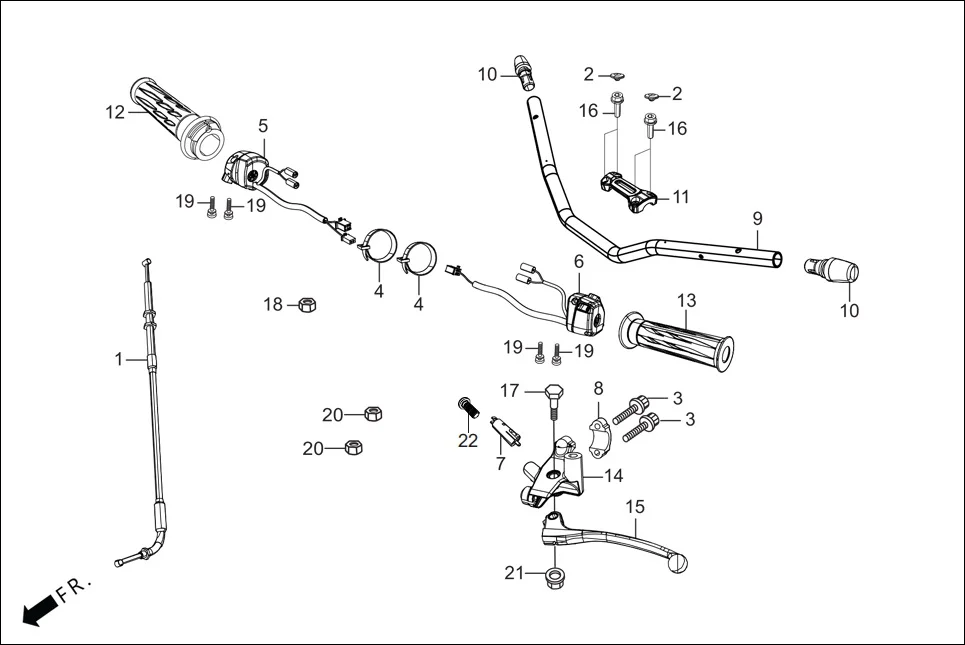

F-3B-CONNECT - HANDLE & HNDL COVER (HANDLE LEVER/SWITCH/CABLES)
Hero XPULSE 200T OBD II(Jun,2023) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ABW-800 | CABLE COMP. THROT | 1 | |
| 2 | 91455-MG8-000 | CAP, SOC BOLT 6 MM | 4 | |
| 3 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-ABW-L21 | SWITCH ASSY ENG STOP AND START | 1 | |
| 6 | 35200-ABW-J01 | SWITCH ASSY WINKER | 1 | |
| 7 | 35330-ABW-L01 | SWITCH COMP. FRONT LEVER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 53100-ABW-800 | PIPE STRG. HANDLE | 1 | |
| 10 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 11 | 53131-ABW-200 | HOLDER HANDLE UP | 1 | |
| 12 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 13 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 14 | 53172-ABW-L00 | BRACKET HANDLE LEVER | 1 | |
| 15 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 16 | 90102-ABW-B00 | BOLT SP FLANGE SOCKET 6X28 | 4 | |
| 17 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 18 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 19 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 4 | |
| 20 | 94002-06000-0S | NUT, HEX 6MM | 2 | |
| 22 | 93500-04010-1C | SCREW PAN 4X10 | 1 | |
