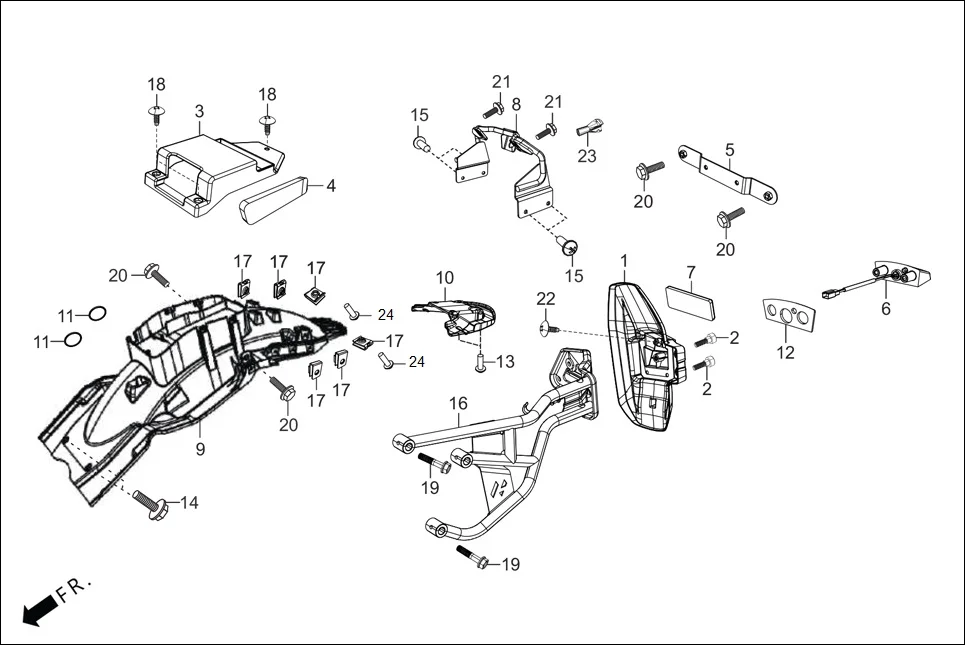

F-20 - REAR FENDER
Hero XPULSE 200T OBD II(Jun,2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80125-ABW-J00 | HUGGER FENDER | 1 | |
| 2 | 90074-AAJ-B00 | BOLT SOCKET 6X16 | 2 | |
| 3 | 80102-ABW-L00 | TCU COVER | 1 | |
| 4 | 83406-AAW-500 | CUSHION, TANK LH SIDE | 1 | |
| 5 | 84701-ABW-J00 | BRACKET RR NO PLATE | 1 | |
| 6 | 33720-ABW-J01 | LIGHT ASSY. LICENSE | 1 | |
| 7 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 8 | 50190-ABW-J00 | STAY COMP. RR FENDER | 1 | |
| 9 | 80100-ABW-000 | RR FENDER A | 1 | |
| 10 | 80110-ABW-J00 | RR FENDER B | 1 | |
| 11 | 80123-KCC-870 | BAND, TOOL | 2 | |
| 12 | 80203-ACP-001 | RUBBER LICENSE LIGHT | 1 | |
| 13 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 14 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 15 | 93891-05016-07 | SCREW WASH 5X16 | 4 | |
| 16 | 52107-ABW-J00 | STAY HUGGER FENDER | 1 | |
| 17 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 18 | 93903-34380 | SCREW, TAPPING, 4X12 | 3 | |
| 19 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 2 | |
| 20 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 5 | |
| 21 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 2 | |
| 22 | 93903-25280 | SCREW, TAPPING 5X12 | 2 | |
| 23 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 24 | 90116-KTP-900 | SCREW WASH 5X16 | 2 | |
