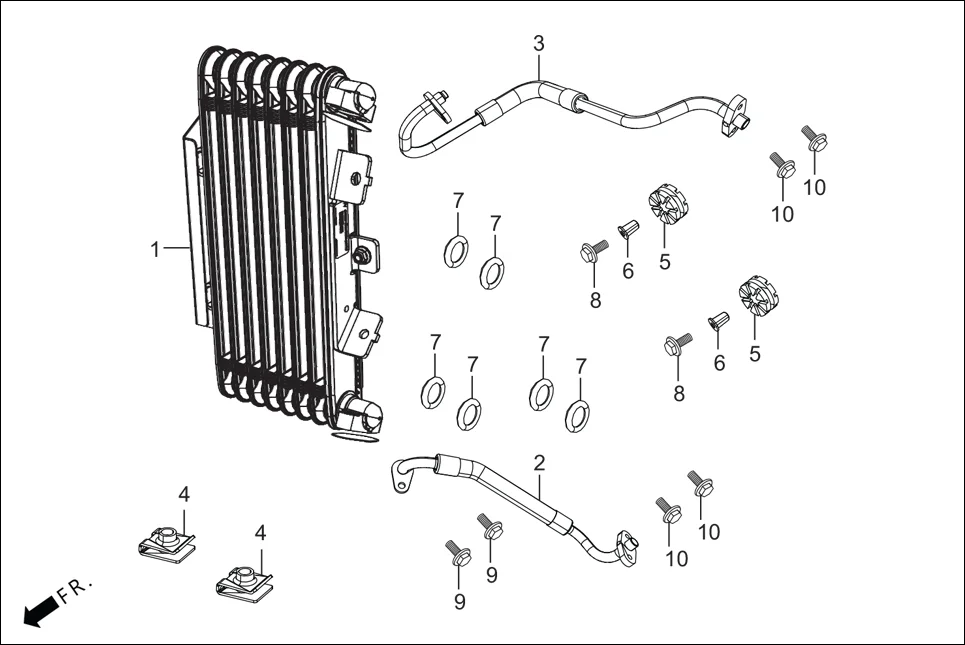

F-1B - OIL COOLER
Hero XPULSE 200T OBD II(Jun,2023) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15600-ABW-900 | OIL COOLER ASSEMBLY | 1 | |
| 2 | 15510-ABW-800 | OIL HOSE A | 1 | |
| 3 | 1552A-ABW-800 | OIL HOSE B COMP | 1 | |
| 4 | 19014-ABW-B00 | SET NUT | 2 | |
| 5 | 19051-KA3-830 | RUBBER, RAD MT | 2 | |
| 6 | 19052-MN8-000 | COLLAR, RAD MT | 2 | |
| 7 | 91314-ME5-003 | O-RING, 10 X 2.6 | 6 | |
| 9 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
