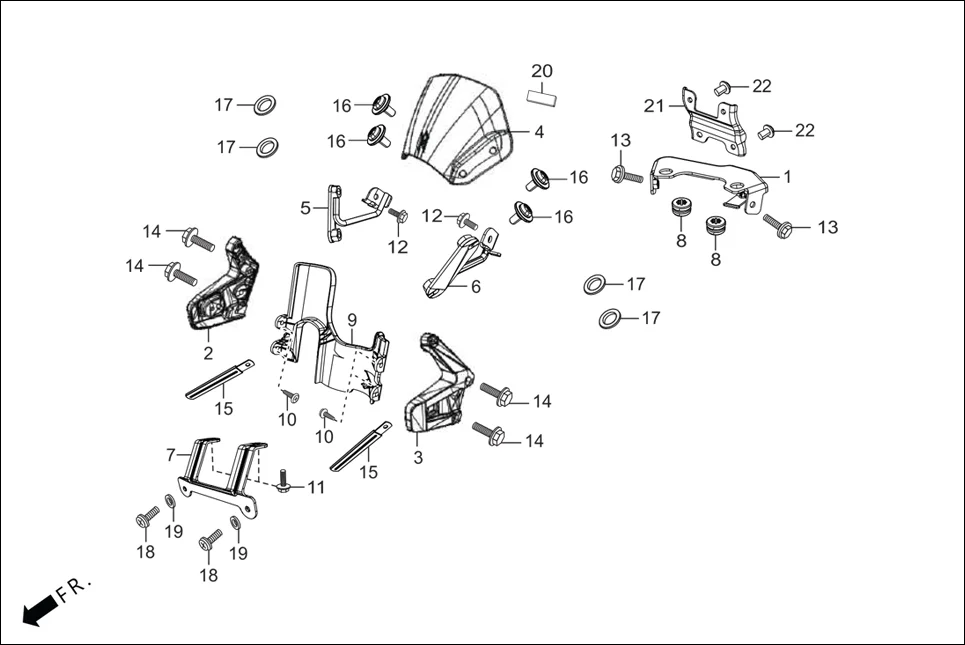

F-1A-CONNECT - FAIRING (FR. VISOR/COWL/STAY)
Hero XPULSE 200T OBD II(Jun,2023) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61312-ABW-L00 | STAY METER MTG. | 1 | |
| 2 | 61313-ABW-100 | BRACKET HEADLIGHT R | 1 | |
| 3 | 61314-ABW-100 | BRACKET HEADLIGHT L | 1 | |
| 4 | 6414A-ABW-800V | SCREEN WIND SUB ASSY. (MAT AXIS GRAY METALLIC) | 1 | |
| 5 | 64141-ABW-000 | STAY SCREEN WIND R COMP | 1 | |
| 6 | 64142-ABW-000 | STAY SCREEN WIND L COMP | 1 | |
| 7 | 64315-ABW-800 | STAY FR NO PLATE | 1 | |
| 8 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 9 | 83402-ABW-800 | PANEL INNER | 1 | |
| 10 | 93500-05010-1A | SCREW, PAN, 5X10 | 4 | |
| 11 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 12 | 96001-06010-00 | BOLT FLANGE SH. 6×10 | 2 | |
| 13 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 2 | |
| 14 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
| 15 | 91410-ABW-000 | CLIP 3X130 | 2 | |
| 16 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 17 | 90504-KWA-940 | WASHER SCREEN | 4 | |
| 19 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 20 | 83407-AAY-000 | CUSHION A | 1 | |
| 21 | 53129-ABW-J00 | STAY USB | 1 | |
| 22 | 93891-04010-07 | SCREW WASH 4X10 | 2 | |
