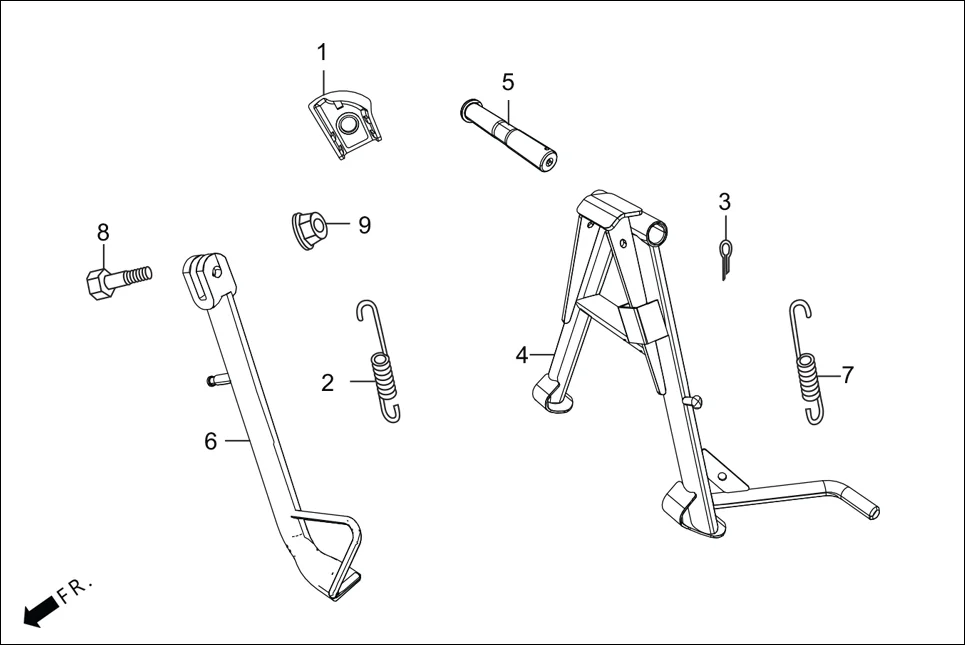

F-18 - CHAIN CASE & STAND
Hero XPULSE 200T OBD II(Jun,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
| 2 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 3 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 4 | 50500-AAB-000 | STAND COMP MAIN | 1 | |
| 5 | 50526-KCT-690 | SHAFT, MAIN STAND PIVOT | 1 | |
| 6 | 50530-KVE-900 | BAR COMP., SIDE STAND | 1 | |
| 7 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 8 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 9 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
