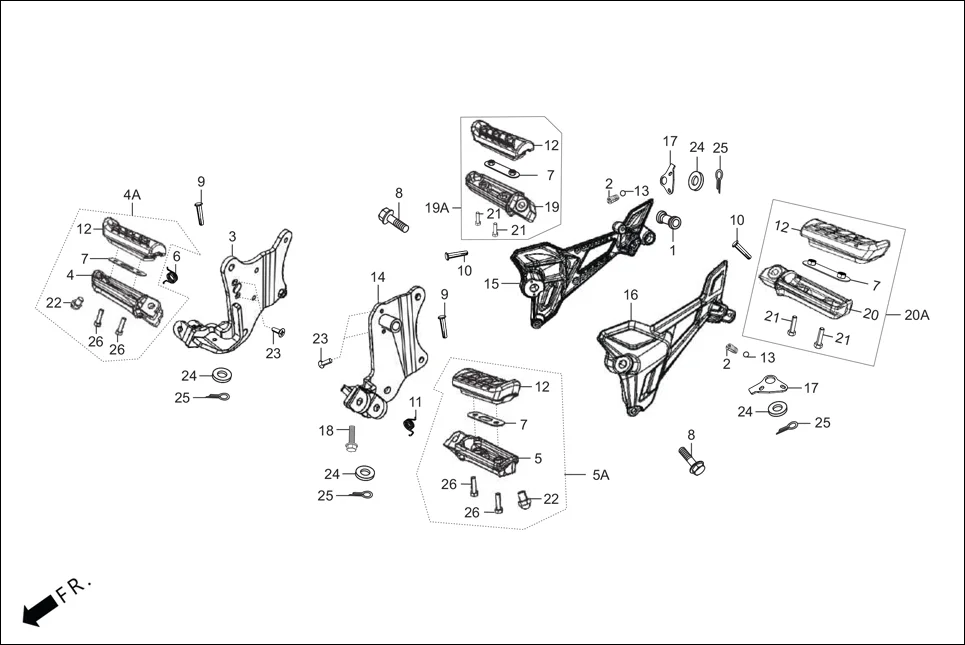

F-15 - STEP PILLION / HOLDER / BRKT.
Hero XPULSE 200T OBD II(Jun,2023) · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 2 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 3 | 50600-ABW-000 | HOLDER RH RIDER STEP | 1 | |
| 4 | 50612-ABW-800 | ARM R STEP | 1 | |
| 4 | 5061A-ABW-800 | ARM R STEP SUB ASSY | 1 | |
| 5 | 50642-ABW-800 | ARM L STEP | 1 | |
| 5 | 5064A-ABW-800 | ARM L STEP SUB ASSY | 1 | |
| 6 | 50617-AAS-000 | SPG STEP RETURN R | 1 | |
| 7 | 50619-KRY-970 | PLATE STEP SET | 4 | |
| 8 | 95801-10065-00 | BOLT FLANGE 10X65 | 2 | |
| 9 | 50639-ABW-000 | PIN, FOOTPEG | 2 | |
| 10 | 50639-KRY-970 | PIN, STEP BAR | 2 | |
| 11 | 50644-AAS-000 | SPG STEP RETURN L | 1 | |
| 12 | 50661-KVE-860 | RUBBER,STEP | 4 | |
| 13 | 96211-08000 | BALL STEEL 8 MM | 2 | |
| 14 | 50700-ABW-000 | HOLDER LH RIDER STEP | 1 | |
| 15 | 50701-ABW-J20 | HOLDER R PILLION STEP | 1 | |
| 16 | 50702-ABW-J20 | HOLDER L PILLION STEP | 1 | |
| 17 | 50718-AAS-000 | DETENT PLATE BALL | 2 | |
| 18 | 96001-06030-00 | BOLT, FLANGE, SH., 6 X 30 | 1 | |
| 19 | 50720-ABW-800 | ARM R PILLION STEP | 1 | |
| 19 | 5072A-ABW-800 | ARM R PILLION STEP SUB. ASSY | 1 | |
| 20 | 50730-ABW-800 | ARM L PILLION STEP | 1 | |
| 20 | 5073A-ABW-800 | ARM L PILLION STEP SUB. ASSY | 1 | |
| 21 | 90115-MV9-000 | BOLT, M. STEP RUB.SET | 4 | |
| 22 | 92501-AAB-A00 | BOLT HEX SPL 8X10 | 2 | |
| 23 | 93600-04012-0A | SCREW, FLAT, 4X12 | 4 | |
| 24 | 94102-08000 | WASHER, PLAIN, 8MM | 4 | |
| 25 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 4 | |
| 26 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
