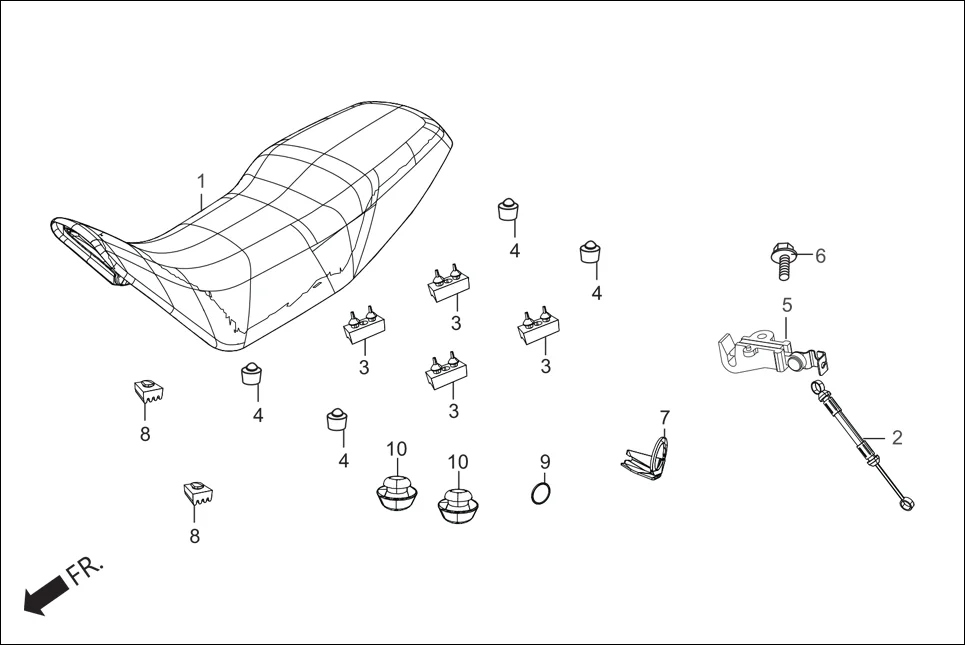

F-10 - SEAT ASSY.
Hero XPULSE 200T OBD II(Jun,2023) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-ABW-200 | SEAT COMP DOUBLE | 1 | |
| 2 | 77156-ABW-000 | CABLE SEAT LOCK | 1 | |
| 3 | 77204-AAR-000 | CUSHION RUBBER RIDER SEAT | 4 | |
| 4 | 50354-428-000 | STOPPER,RUBBERB | 4 | |
| 5 | 77220-KY6-000 | HOOK, SEAT CATCH | 1 | |
| 6 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 7 | 77244-ABW-000 | STAY SEAT LOCK CABLE | 1 | |
| 8 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 2 | |
| 9 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 10 | 50354-ABW-000 | STOPPER RUBBER B | 2 | |
