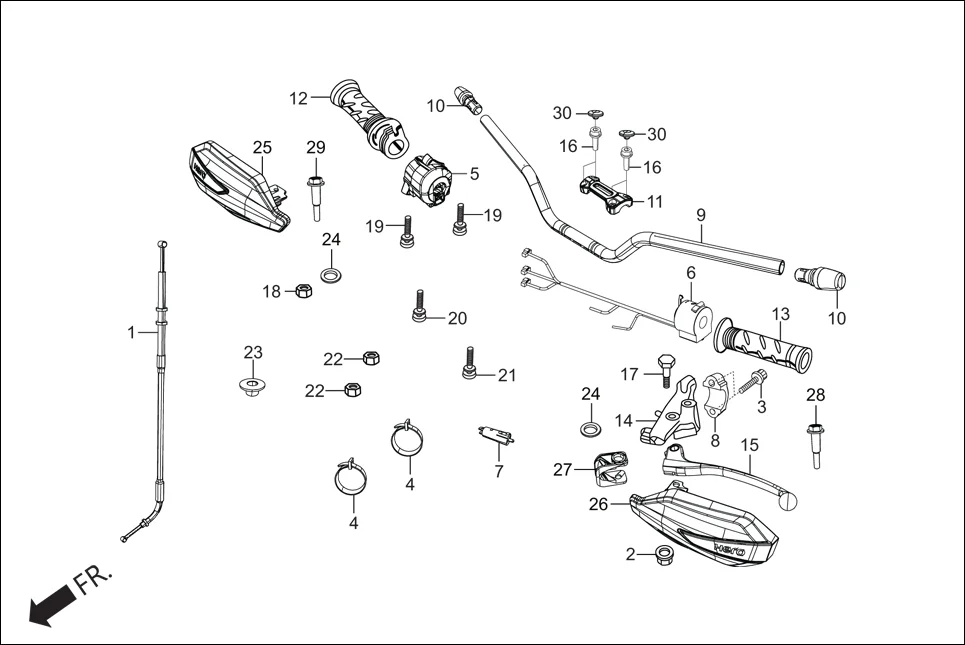

F-3B - HANDLE & HNDL COVER (HANDLE LEVER/SWITCH/CABLES)
Hero Xpulse 200 2V BSVI (Jun, 2020) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-AAB-C00 | CABLE COMP. THROT | 1 | |
| 3 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-AAB-A01 | SW ASSY ENG ST AND START | 1 | |
| 6 | 35200-ABW-001 | SW. ASSY. WINKER | 1 | |
| 7 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 53100-ABW-300 | PIPE STRG HANDLE | 1 | |
| 10 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 11 | 53131-AAB-A00 | HOLDER HANDLE UP | 1 | |
| 12 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 13 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 14 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 15 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 16 | 90102-KVN-900 | BOLT, SP. FLANGE SOCKET 6 X 22 | 4 | |
| 17 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 18 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 19 | 93892-05020-07 | SCREW, WASHER, 5X20 | 2 | |
| 20 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 21 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
| 22 | 94002-06000-0S | NUT, HEX 6MM | 2 | |
| 23 | 90501-KCC-870 | COLLAR, FR. FENDER SET | 1 | |
| 24 | 94102-10000 | WASHER, PLAIN, 10MM | 2 | |
| 25 | 53181-ABW-100X | HAND GUARD RH (PIGMENTED BLACK) | 1 | |
| 25 | 53181-ABW-100Z | HAND GUARD RH (PIGMENTED WHITE) | 1 | |
| 26 | 53182-ABW-100X | HAND GUARD LH (PIGMENTED BLACK) | 1 | |
| 26 | 53182-ABW-100Z | HAND GUARD LH (PIGMENTED WHITE) | 1 | |
| 27 | 53184-AAM-410 | HAND GUARD STOPPER LH | 1 | |
| 28 | 90113-AAM-410 | BOLT HNDL. LEVER PIVOT | 1 | |
| 29 | 90114-AAM-400 | BOLT LEVER PIVOT | 1 | |
| 30 | 91455-MG8-000 | CAP, SOC BOLT 6 MM | 4 | |
