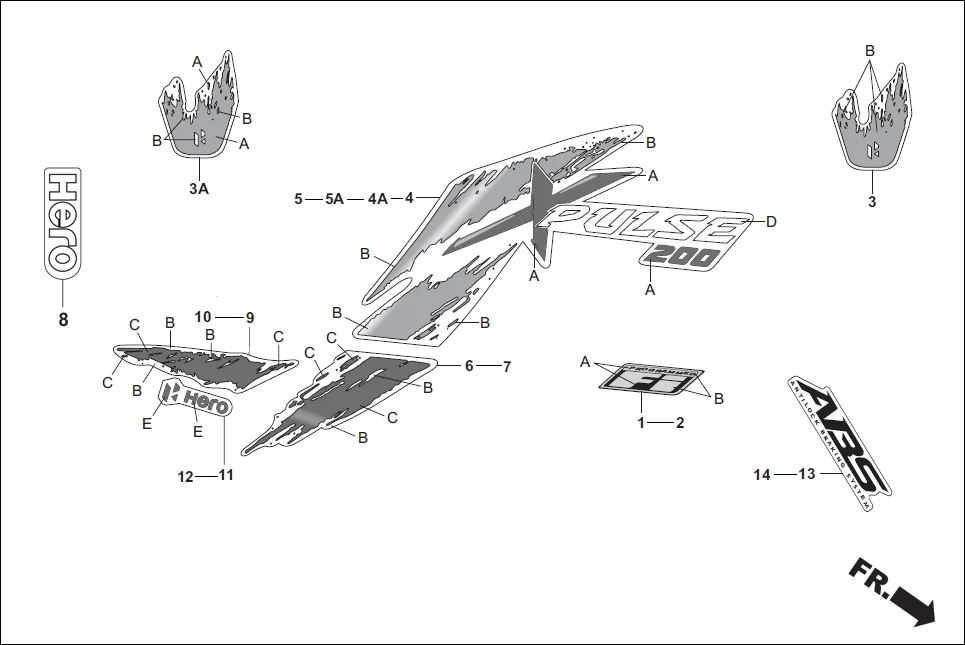

F-27 - STRIPE/ MARKS
Hero Xpulse 200 2V BSVI (Jun, 2020) · 45 parts
Parts in This Assembly (45)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 85402-ABW-200R | PROGRAMMED FI MARK R SIDE (TYPE-1) | 1 | |
| 2 | 85403-ABW-200R | PROGRAMMED FI MARK L SIDE (TYPE-1) | 1 | |
| 3 | 86776-ABW-300R | STRIPE FR FENDER (TYPE-1) | 1 | |
| 3 | 86776-ABW-300T | STRIPE FR FENDER (TYPE-3) | 1 | |
| 3 | 86776-ABW-100R | STRIPE FR FENDER (TYPE-1) | 1 | |
| 3 | 86776-ABW-100S | STRIPE FR FENDER (TYPE-2) | 1 | |
| 4 | 86781-ABW-300R | STRIPE R FUEL TANK (TYPE-1) | 1 | |
| 4 | 86781-ABW-300S | STRIPE R FUEL TANK (TYPE-2) | 1 | |
| 4 | 86781-ABW-300T | STRIPE R FUEL TANK (TYPE-3) | 1 | |
| 4 | 86781-ABW-100R | STRIPE R FUEL TANK (TYPE-1) | 1 | |
| 4 | 86781-ABW-100S | STRIPE R FUEL TANK (TYPE-2) | 1 | |
| 5 | 86782-ABW-300R | STRIPE L FUEL TANK (TYPE-1) | 1 | |
| 5 | 86782-ABW-300S | STRIPE L FUEL TANK (TYPE-2) | 1 | |
| 5 | 86782-ABW-300T | STRIPE L FUEL TANK (TYPE-3) | 1 | |
| 5 | 86782-ABW-100R | STRIPE L FUEL TANK (TYPE-1) | 1 | |
| 5 | 86782-ABW-100S | STRIPE L FUEL TANK (TYPE-2) | 1 | |
| 6 | 86783-ABW-300R | STRIPE A, SIDE COVER A R SIDE (TYPE-1) | 1 | |
| 6 | 86783-ABW-300S | STRIPE A, SIDE COVER A R SIDE (TYPE-2) | 1 | |
| 6 | 86783-ABW-300T | STRIPE A, SIDE COVER A R SIDE (TYPE-3) | 1 | |
| 6 | 86783-ABW-100R | STRIPE A SIDE COVER A, R SIDE (TYPE-1) | 1 | |
| 6 | 86783-ABW-100S | STRIPE A SIDE COVER A, R SIDE (TYPE-2) | 1 | |
| 7 | 86784-ABW-300R | STRIPE A, SIDE COVER A L SIDE (TYPE-1) | 1 | |
| 7 | 86784-ABW-300S | STRIPE A, SIDE COVER A L SIDE (TYPE-2) | 1 | |
| 7 | 86784-ABW-300T | STRIPE A, SIDE COVER A L SIDE (TYPE-3) | 1 | |
| 7 | 86784-ABW-100R | STRIPE A,SIDE COVER A, L SIDE (TYPE-1) | 1 | |
| 7 | 86784-ABW-100S | STRIPE A,SIDE COVER A, L SIDE (TYPE-2) | 1 | |
| 8 | 86785-ABW-000R | MARK HERO TAIL LGHT COVER (TYPE-1) | 1 | |
| 9 | 86785-ABW-300R | STRIPE B, SIDE COVER A R SIDE (TYPE-1) | 1 | |
| 9 | 86785-ABW-300S | STRIPE B, SIDE COVER A R SIDE (TYPE-2) | 1 | |
| 9 | 86785-ABW-300T | STRIPE B, SIDE COVER A R SIDE (TYPE-3) | 1 | |
| 9 | 86785-ABW-100R | STRIPE B SIDE COVER A, R SIDE (TYPE-1) | 1 | |
| 9 | 86785-ABW-100S | STRIPE B SIDE COVER A, R SIDE (TYPE-2) | 1 | |
| 10 | 86786-ABW-300R | STRIPE B, SIDE COVER A LSIDE (TYPE-1) | 1 | |
| 10 | 86786-ABW-300S | STRIPE B, SIDE COVER A LSIDE (TYPE-2) | 1 | |
| 10 | 86786-ABW-300T | STRIPE B, SIDE COVER A LSIDE (TYPE-3) | 1 | |
| 10 | 86786-ABW-100R | STRIPE B,SIDE COVER A, L SIDE (TYPE-1) | 1 | |
| 10 | 86786-ABW-100S | STRIPE B,SIDE COVER A, L SIDE (TYPE-2) | 1 | |
| 11 | 86797-ABW-300R | STRIPE C SIDE COVER A, R SIDE (TYPE-1) | 1 | |
| 11 | 86787-ABW-100S | STRIPE C SIDE COVER A, R SIDE (TYPE-2) | 1 | |
| 11 | 86787-ABW-100R | STRIPE C SIDE COVER A, R SIDE (TYPE-1) | 1 | |
| 12 | 86798-ABW-300R | STRIPE C SIDE COVER A, L SIDE (TYPE-1) | 1 | |
| 12 | 86788-ABW-100S | STRIPE C SIDE COVER A, L SIDE (TYPE-2) | 1 | |
| 12 | 86788-ABW-100R | STRIPE C SIDE COVER A, L SIDE (TYPE-1) | 1 | |
| 13 | 86787-ABW-300R | MARK ABS R SIDE (TYPE-1) | 1 | |
| 14 | 86788-ABW-300R | MARK ABS L SIDE (TYPE-1) | 1 | |
