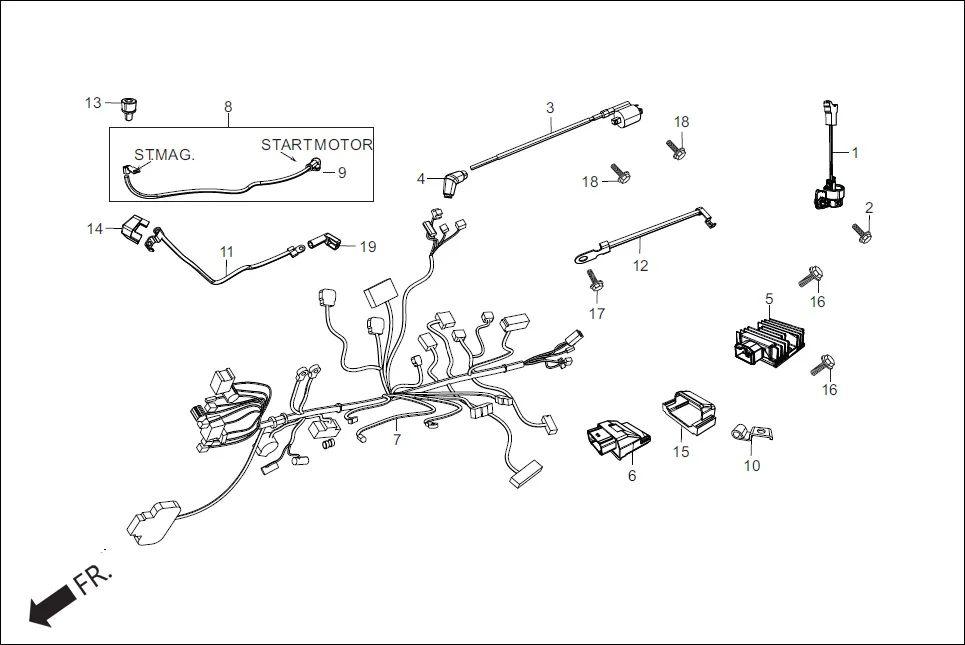

F-24 - ELECTRICALS (WIRE HARNESS/START CABLES)
Hero Xpulse 200 2V BSVI (Jun, 2020) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35160-ABH-001 | SENSOR ASSY BANK ANGLE | 1 | |
| 2 | 90002-ABA-000 | BOLT FLANGE 5X20 | 1 | |
| 3 | 30510-ABW-201 | COIL COMP. IGNITION | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31600-ABW-201 | REG REC COMP | 1 | |
| 6 | 38770-ABW-B01 | UNIT COMP ECU | 1 | |
| 7 | 32100-ABW-B00 | HARNESS WIRE | 1 | |
| 8 | 32410-ABW-000 | CABLE START MOTOR | 1 | |
| 9 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 10 | 32413-KRY-970 | TERMINAL, BAT CABLE | 1 | |
| 11 | 32601-AAB-A00 | CABLE BAT EARTH | 1 | |
| 12 | 32602-ABW-000 | CABLE, ENG EARTH | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 14 | 32406-ABW-000 | COVER ST.MAG.TERMINAL | 1 | |
| 15 | 38771-ABH-000 | CUSHION. IGN. UNIT | 1 | |
| 16 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 17 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 18 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 19 | 32417-KTR-A10 | COVER, BAT. TERMINAL | 1 | |
