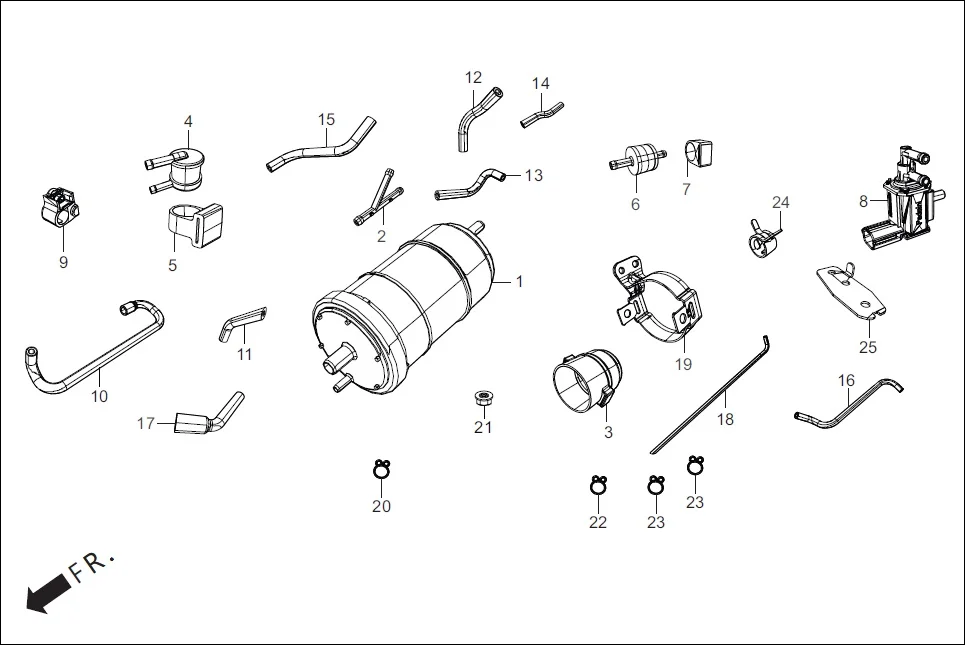

F-11A-FUEL TANK (CANISTER ASSY.)
HeroXpulse 200 2V BSVI (Jun, 2020) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAM-001 | CANISTER COMP | 1 | |
| 2 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 3 | 17411-AAB-500 | SUSP CANISTER | 1 | |
| 4 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 5 | 17421-AAB-500 | SUSP ROLL OVER VALVE | 1 | |
| 6 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 7 | 17431-AAH-A00 | SUSP. ONE WAY VALVE | 1 | |
| 8 | 17554-AAG-A01 | PURGE SOLENOID VALVE | 1 | |
| 9 | 17646-MN8-700 | RUBBER SEAL BREATHER | 1 | |
| 10 | 17670-ABW-200 | PURGE TUBE A | 1 | |
| 11 | 17697-AAM-000 | TUBE ONE WAY VALVE | 1 | |
| 12 | 17690-ABW-200 | TUBE A PIPE BREATHER | 1 | |
| 13 | 17691-ABW-000 | TUBE A CANISTER | 1 | |
| 14 | 17693-ABW-000 | TUBE A J3W | 1 | |
| 15 | 17694-ABW-000 | TUBE B J3W | 1 | |
| 16 | 17671-ABW-200 | PURGE TUBE B | 1 | |
| 17 | 17695-AAM-000 | TUBE AIR CANISTER | 1 | |
| 18 | 17696-ABW-000 | TUBE DRAIN | 1 | |
| 19 | 50151-AAB-A00 | CANISTER CLIP | 1 | |
| 20 | 95002-02080 | CLIP, TUBE | 11 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 22 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 23 | 95002-70000 | CLIP, C11 TUBE | 2 | |
| 24 | 95002-40800-08 | CLAMP D 8.0 TUBE | 1 | |
| 25 | 17554-ABW-2000-2 | STAY PURGE SOLENOID VALVE | 1 |
