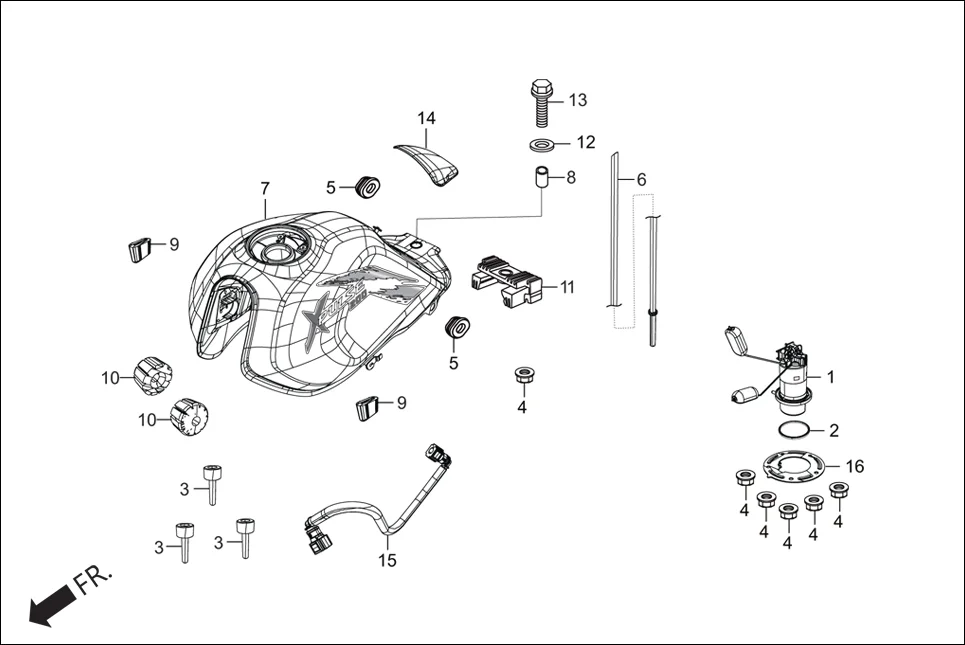

F-11 - FUEL TANK / FUEL UNIT
Hero Xpulse 200 2V BSVI (Jun, 2020) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-ABW-201 | UNIT ASSY FUEL PUMP | 1 | |
| 2 | 17572-AAB-C00 | GASKET FUEL PUMP | 1 | |
| 3 | 90074-KVE-900 | BOLT SOCKET 4 X 21 | 3 | |
| 5 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 6 | 17199-AAC-200 | TUBE DRAIN | 1 | |
| 7 | 17520-ABW-300R | SET FUEL TANK (MAT AXIS GRAY ME.) | 1 | |
| 7 | 17520-ABW-300S | SET FUEL TANK (ME. MATT GREEN) | 1 | |
| 7 | 17520-ABW-300T | SET FUEL TANK (PEARL FADELESS WHITE) | 1 | |
| 7 | 17520-ABW-B00U | SET FUEL TANK (BLACK NH-1) | 1 | |
| 7 | 17520-ABW-B00V | SET FUEL TANK (SPORTS RED) | 1 | |
| 8 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 9 | 77267-KTR-900 | RUBBER, COWL | 2 | |
| 10 | 17611-KRY-970 | CUSHION , FRONT FUEL TANK | 2 | |
| 11 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 12 | 90534-MV4-000 | WASHER ,8.5X28 | 1 | |
| 13 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 14 | 17547-ABW-100 | PAD FUEL TANK MIDDLE | 1 | |
| 15 | 17570-ABW-200 | HOSE COMP. FUEL FEED | 1 | |
| 16 | 17521-ABW-200 | PLATE SETTING | 1 | |
