F-1 - HEAD LIGHT

Hero Xpulse 200 2V BSVI (Jun, 2020) · 2 parts

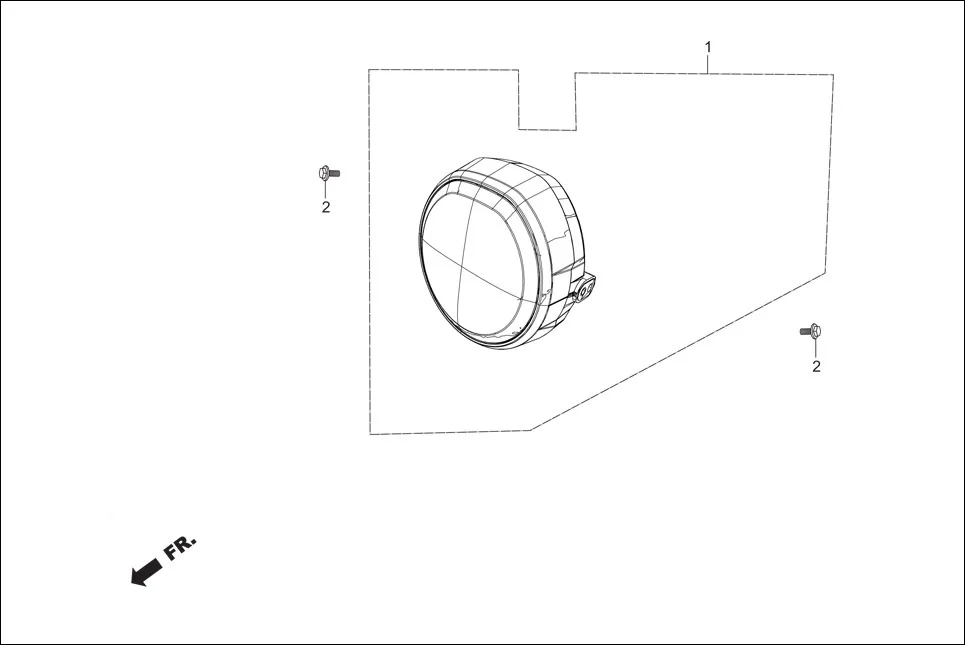

F-1 HEAD LIGHT assembly diagram for Hero Xpulse 200 2V BSVI (Jun, 2020)

Parts in This Assembly (2)

Ref # Part Number Description Qty
1 3310B-ABW-201 LIGHT ASSY HEAD 1
2 96001-06012-00 BOLT,FLANGE,SH,.6 X 12 2
