OEM Part
OEM Part
ADRGS6B0010BBG
STRIPE A FUEL TANK LH (TYPE-3)
Qty Required: 1
Ref #4 in Assembly
Part of Assembly
F-27_PRO_CONN
STRIPE/ MARKS
9 parts in this assembly

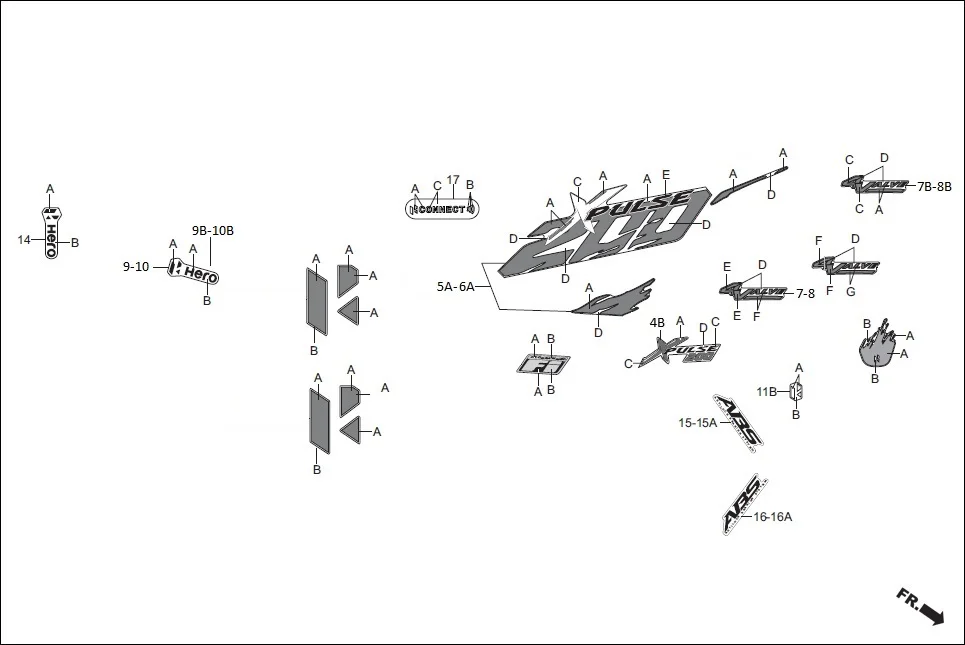

Assembly Diagram
Ref #4
Supported Vehicles1
Related Parts
ADRGS6B0020BBG
STRIPE B FUEL TANK RH (TYPE-3)
ADRGS6B0030BBG
STRIPE B FUEL TANK LH (TYPE-3)
ADRGS6B0040BBG
STRIPE C FUEL TANK RH (TYPE-1)
ADRGS6B0050BBG
STRIPE C FUEL TANK LH (TYPE-1)
ADRGS6B0090BBG
MARK HERO ACC MOUNTING COVER R (TYPE-1)
ADRGS6B0100BBG
MARK HERO ACC MOUNTING COVER L (TYPE-1)
