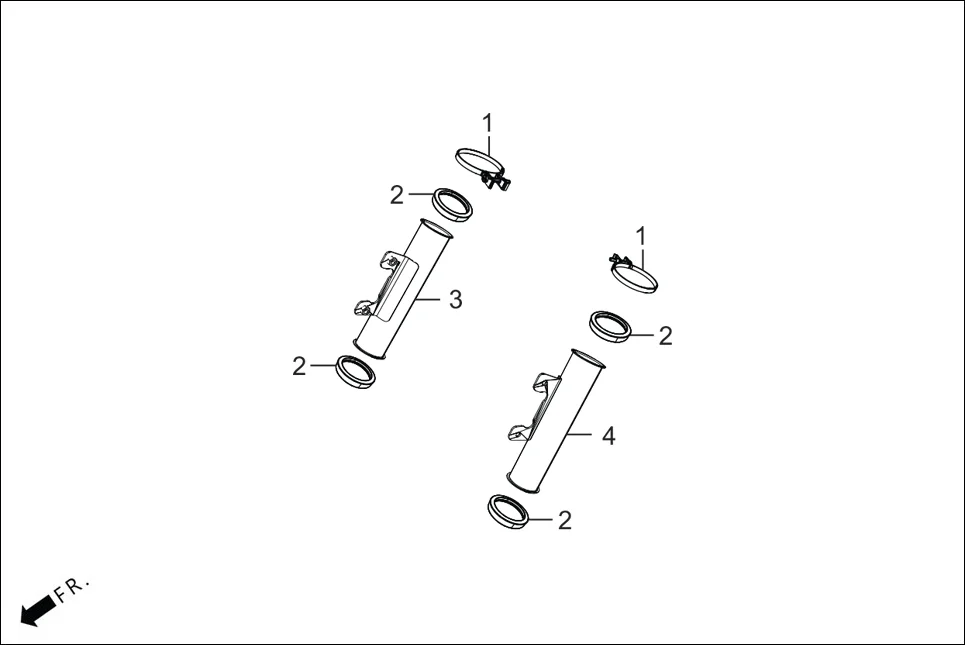

F-6B - FRONT CUSHION (COVER)
Hero XPULSE 200 4V(NOV.,2024) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51617-ABW-101 | BOOT CLAMP | 2 | |
| 2 | 51601-ABW-000 | MOUNT RUBBER FORK COVER UP | 4 | |
| 3 | 51602-ABW-900 | COVER COMP. R. FR. FORK COVER | 1 | |
| 3 | 51602-ABW-100 | COVER COMP R FR FORK COVER | 1 | |
| 4 | 51606-ABW-900 | COVER COMP. L. FR. FORK COVER | 1 | |
| 4 | 51606-ABW-100 | COVER COMP L FR FORK COVER | 1 | |
