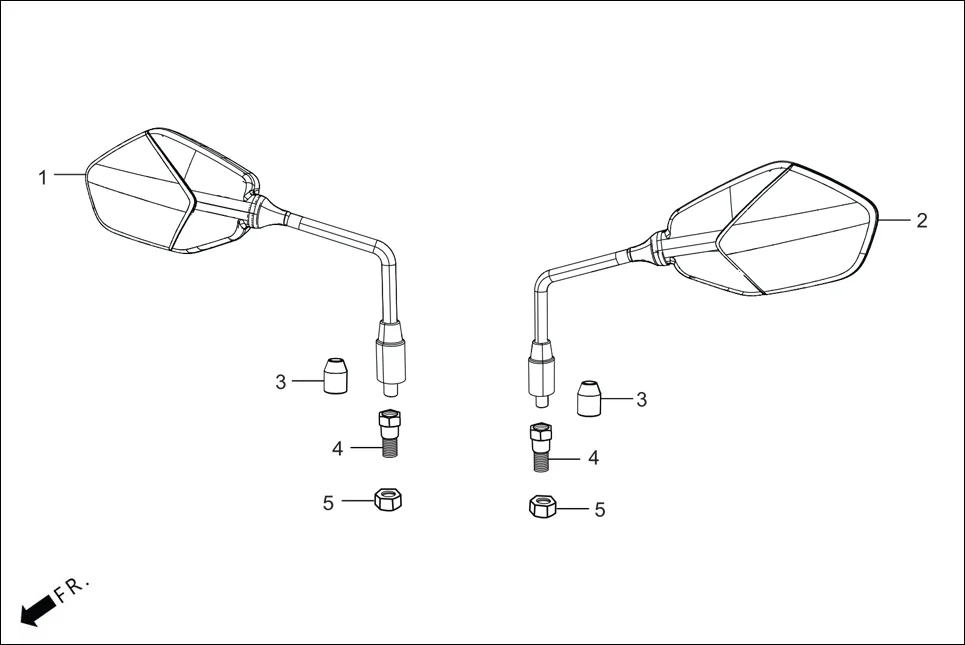

F-3A_NON_CONN - MIRROR ASSY.
Hero XPULSE 200 4V(NOV.,2024) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-ABW-901B | MIRROR ASSY R BACK (TECHNO BLUE METALLIC) | 1 | |
| 1 | 88110-AAB-700S | MIRROR ASSY R BACK(PFW,NH-341P) | 1 | |
| 1 | 88110-AAB-H61ZB | MIRROR ASSY R BACK(SRD, R-321) | 1 | |
| 1 | 88110-ABW-901H | MIRROR ASSY R BACK (DARK INDUSTRIAL GREY) | 1 | |
| 2 | 88120-ABW-901B | MIRROR ASSY L BACK (TECHNO BLUE METALLIC) | 1 | |
| 2 | 88120-AAB-700S | MIRROR ASSY L BACK(PFW,NH-341P) | 1 | |
| 2 | 88120-AAB-H61ZB | MIRROR ASSY L BACK(SRD, R-321) | 1 | |
| 2 | 88120-ABW-901H | MIRROR ASSY L BACK (DARK INDUSTRIAL GREY) | 1 | |
| 3 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 4 | 90003-MY5-720 | BOLT,ADPT.10MM | 2 | |
| 5 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
