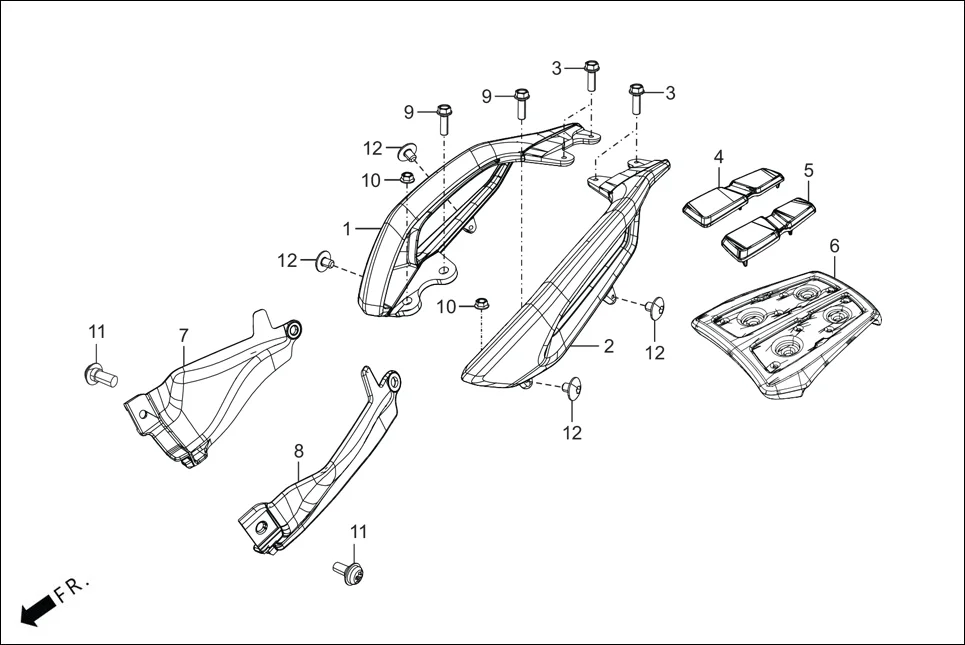

F-25B_NON_CONN - GRIP REAR
Hero XPULSE 200 4V(NOV.,2024) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-ABW-L00C | GRIP R REAR | 1 | |
| 2 | 50450-ABW-L00C | GRIP L REAR | 1 | |
| 3 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 4 | |
| 4 | 81301-ABW-000 | RUBBER GRIP REAR R | 1 | |
| 5 | 81302-ABW-000 | RUBBER GRIP REAR L | 1 | |
| 6 | 81300-ABW-900 | LUGGAGE CARRIER CENTER | 1 | |
| 6 | 81300-ABW-000U | LUGGAGE CARRIER CENTER (IRON NAIL SILVER ME.) | 1 | |
| 7 | 77210-ABW-000 | COVER GRIP R | 1 | |
| 8 | 77220-ABW-000 | COVER GRIP L | 1 | |
| 9 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 2 | |
| 10 | 94050-08000 | NUT, FLANGE, 8MM | 2 | |
| 11 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 12 | 90107-ABW-L00 | BOLT SPL 6X8 | 4 | |
