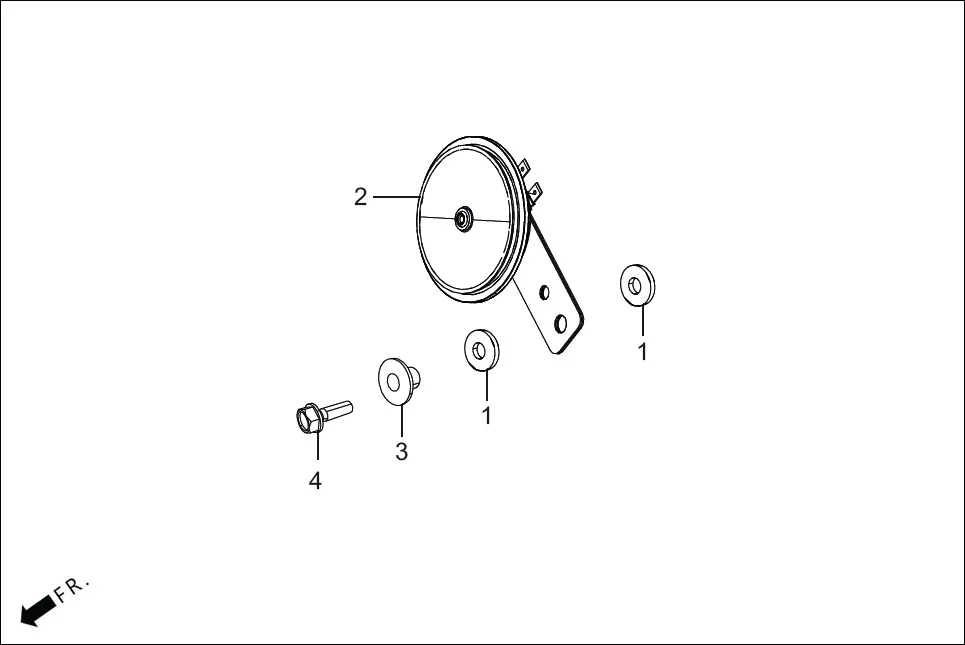

F-25A - HORN ASSY.
Hero XPULSE 200 4V(NOV.,2024) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 2 | 38110-ABW-801 | HORN COMP. | 1 | |
| 3 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
