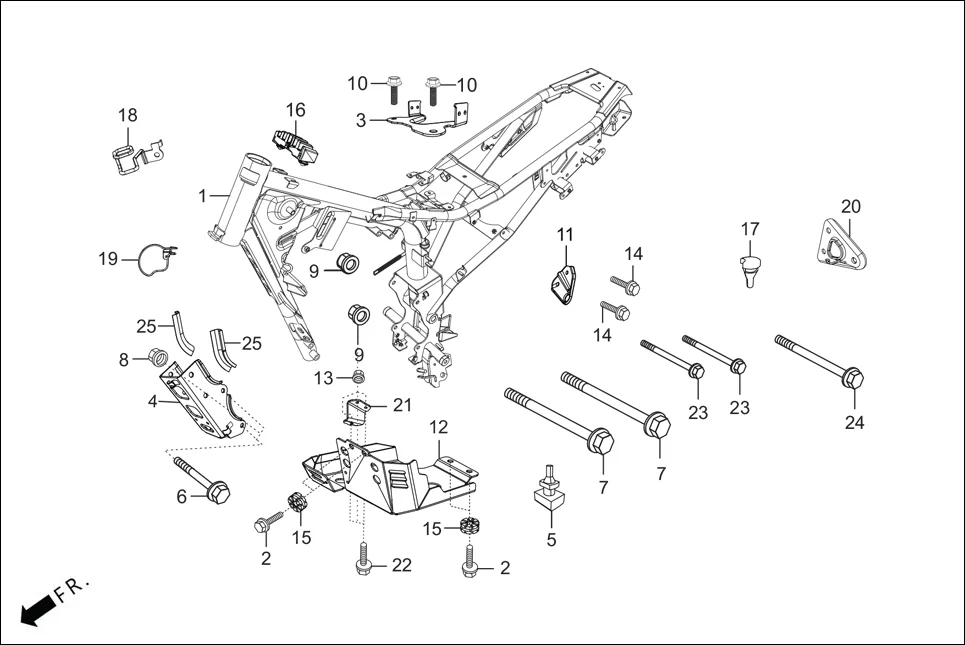

F-25 - FRAME BODY
Hero XPULSE 200 4V(NOV.,2024) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-ABW-900 | FRAME BODY COMP | 1 | |
| 3 | 50337-ABW-J00 | STAY ECU | 1 | |
| 4 | 50351-ABW-800 | PLATE FR ENGINE HANGER | 1 | |
| 5 | 50505-KTN-700 | RUBBER, A STAND STOPPER | 1 | |
| 6 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 3 | |
| 7 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 9 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
| 11 | 50112-ABW-000 | BRKT COMP, EXHAUST MNTG | 1 | |
| 12 | 64300-ABW-B00 | BASH PLATE | 1 | |
| 15 | 64306-ABW-300 | GROMMET, BASH PLATE | 4 | |
| 16 | 50328-ABW-000 | DAMPER TANK COMP FUEL | 1 | |
| 17 | 50137-AAR-000 | PLUG CABLE RETENTION | 2 | |
| 18 | 50157-ABW-800 | GUIDE, CLUTCH CABLE | 1 | |
| 19 | 50180-ABW-900 | GUARD HORN | 1 | |
| 20 | 50353-ABW-800 | BRKT. ENGINE HANGER UP | 1 | |
| 21 | 64310-ABW-B00 | STAY, BASH PLATE | 1 | |
| 22 | 90107-ABW-100 | BOLT SPL. 6X14 | 3 | |
| 23 | 95801-08055-00 | BOLT FLANGE 8X55. | 2 | |
| 24 | 95801-08090-00 | BOLT FLANGE 8X90 | 1 | |
| 25 | 52133-ABW-B00 | FILM,PROTECTOR | 2 | |
