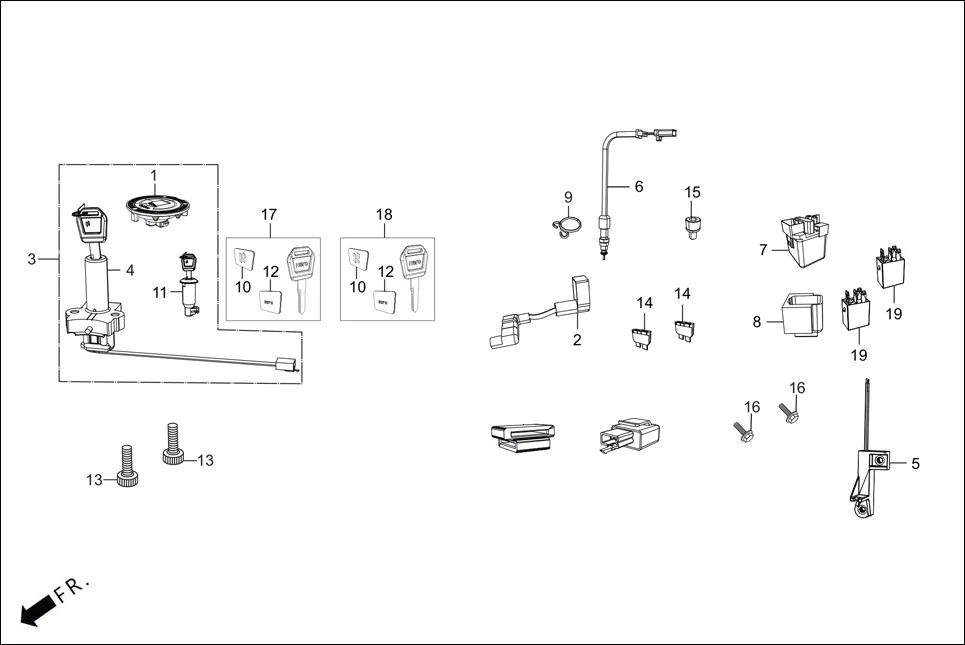

F-23_NON_CONN - SWITCH ASSY./ RELAY / LOCK ASSY./ KEY BLANK
Hero XPULSE 200 4V(NOV.,2024) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-ABW-L01 | CAP COMP FUEL FILLER | 1 | |
| 2 | 32401-ABW-000 | CABLE ST MAG BATT | 1 | |
| 3 | 35010-ABW-L01 | KEY SET | 1 | |
| 4 | 35100-AAK-201 | SWITCH ASSY., COMB & LOCK | 1 | |
| 5 | 35140-ABW-201 | SIDE STAND SWITCH | 1 | |
| 6 | 35350-KVE-930A | SWITCH ASSY, REAR STOP | 1 | |
| 7 | 35850-AAM-H01 | SW ASSY. START MAG | 1 | |
| 8 | 35856-KBG-007 | RUBBER,SHOCK | 1 | |
| 10 | 35113-ABW-000 | EMBLEM ICON | 2 | |
| 11 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 12 | 35114-ABW-000 | EMBLEM, WORD MARK | 2 | |
| 13 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 14 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 15 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 16 | 95701-05016-00 | BOLT FLANGE 5X16 | 2 | |
| 17 | 35121-ABW-001 | BLANK KEY NO. 01 | 1 | |
| 18 | 35122-ABW-001 | BLANK KEY NO. 02 | 1 | |
| 19 | 38551-AAW-501 | RELAY COMP. POWER (MICRO ISO 4P) | 2 | |
