F-21A_NON_CONN - REAR WINKER

Hero XPULSE 200 4V(NOV.,2024) · 3 parts

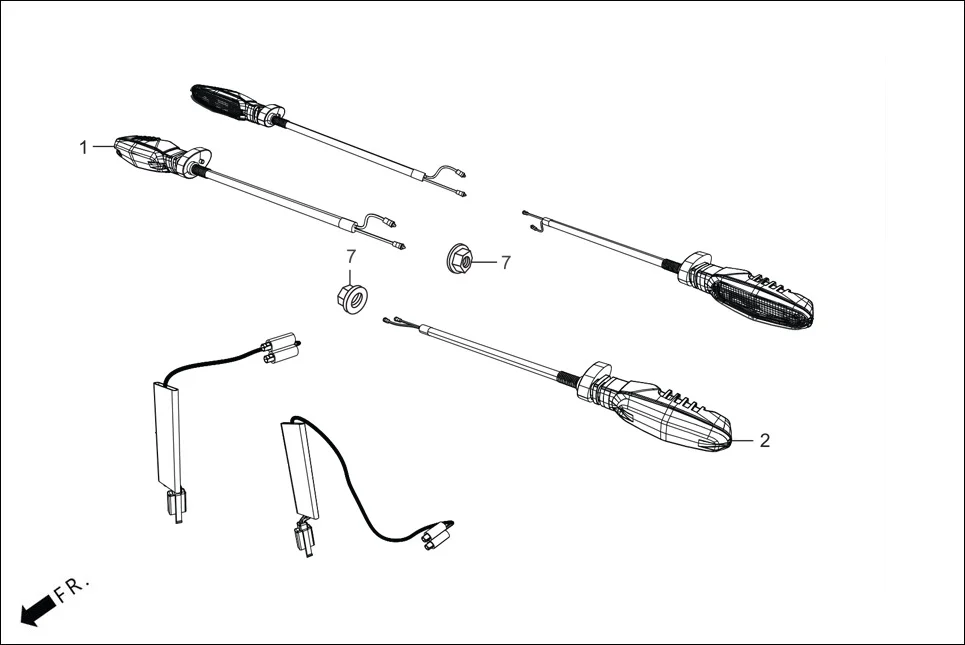

F-21A_NON_CONN REAR WINKER assembly diagram for Hero XPULSE 200 4V(NOV.,2024)

Parts in This Assembly (3)

Ref # Part Number Description Qty
1 33600-ACD-001 WINKER ASSY R RR 1
2 33650-ACD-001 WINKER ASSY L RR 1
7 94050-08000 NUT, FLANGE, 8MM 2
