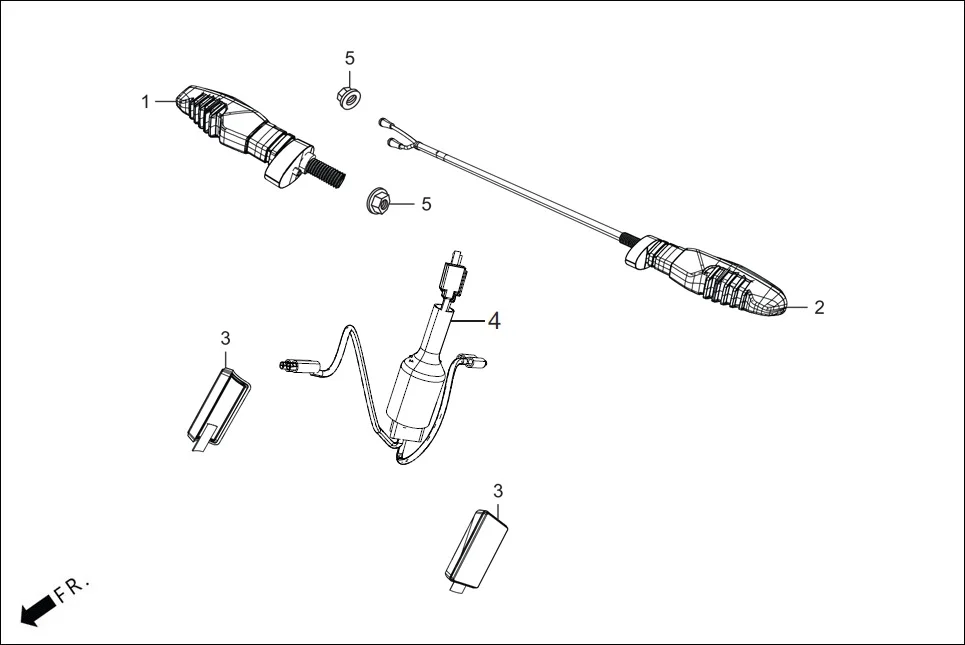

F-21 - FRONT WINKER
Hero XPULSE 200 4V(NOV.,2024) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-ABW-J01 | WINKER ASSY R FR | 1 | |
| 2 | 33450-ABW-J01 | WINKER ASSY L FR | 1 | |
| 4 | 3226A-ABW-J01 | DRIVER PCB SUB ASSY FR | 1 | |
| 5 | 94050-08000 | NUT, FLANGE, 8MM | 2 | |
