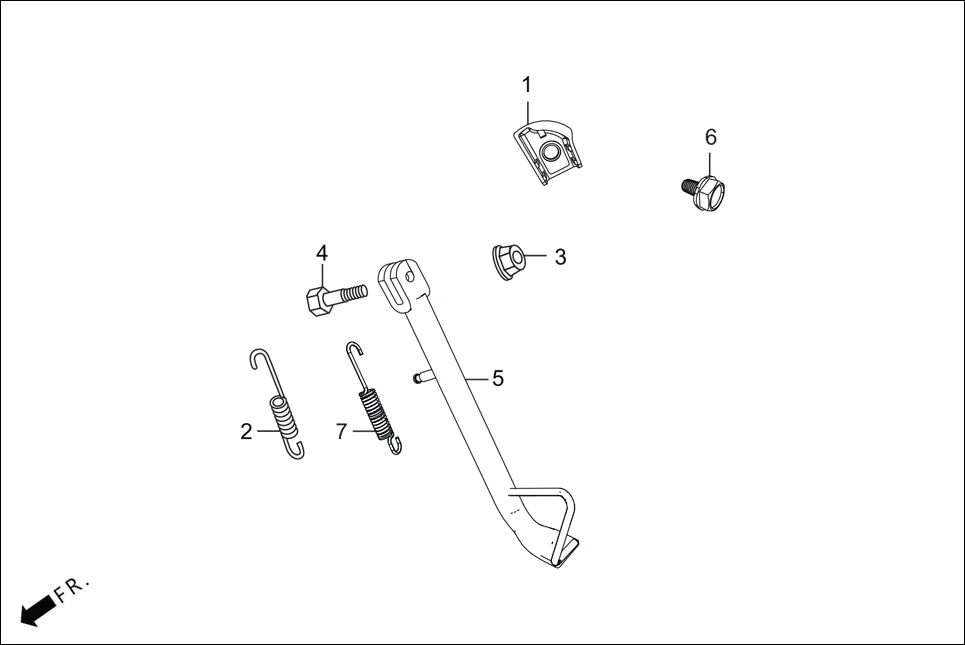

F-18_NON_CONN - CHAIN CASE & STAND
Hero XPULSE 200 4V(NOV.,2024) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
| 2 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 3 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 3 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 4 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 50530-ABW-100 | BAR COMP. SIDE STAND | 1 | |
| 6 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 7 | 95014-72302 | SPRING, C SIDE STAND | 1 | |
