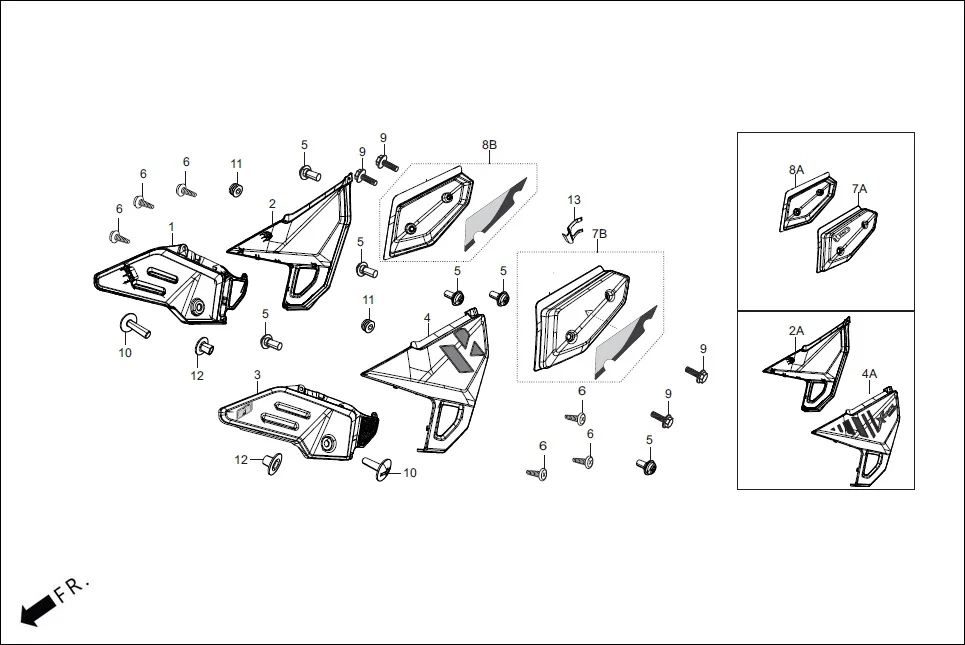

F-12_NON_CONN - SIDE COVER
Hero XPULSE 200 4V(NOV.,2024) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83700-ABW-300R | SET COVER B, R SIDE (MAGM, NH-303M) | 1 | |
| 2 | ADRGS6A0010BBG | SET COVER A R SIDE (BLACK TYPE-2(NH-1(T2)) | 1 | |
| 2 | 83500-ABW-L00B | SET COVER A R SIDE (TECHNO BLUE METALLIC) | 1 | |
| 2 | 83500-ABW-900W | SET COVER A R SIDE (METALLIC NEXUS BLUE) | 1 | |
| 2 | 83500-ABW-L00D | SET COVER A R SIDE (BLACK (TYPE-1)) | 1 | |
| 2 | 83500-ABW-L30R | SET COVER A R SIDE (PEARL FADELESS WHITE) | 1 | |
| 3 | 83800-ABW-300R | SET COVER B, L SIDE (MAGM, NH-303M) | 1 | |
| 4 | ADRGS6A0020BBG | SET COVER A L SIDE (BLACK TYPE-2(NH-1(T2)) | 1 | |
| 4 | 83600-ABW-L00B | SET COVER A L SIDE (TECHNO BLUE METALLIC) | 1 | |
| 4 | 83600-ABW-900W | SET COVER A L SIDE (METALLIC NEXUS BLUE) | 1 | |
| 4 | 83600-ABW-L00D | SET COVER A L SIDE (BLACK (TYPE-1)) | 1 | |
| 4 | 83600-ABW-L30R | SET COVER A L SIDE (PEARL FADELESS WHITE) | 1 | |
| 5 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 6 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
| 7 | ADRGS6A0040BBG | SET ACC MOUNTING COVER L (BLACK TYPE-2(NH-1(T2)) | 1 | |
| 7 | 77245-ABW-900R | SET ACC. MOUNTING COVER L | 1 | |
| 7 | 77245-ABW-900U | SET ACC. MOUNTING COVER L | 1 | |
| 8 | ADRGS6A0030BBG | SET ACC MOUNTING COVER R (BLACK TYPE-2(NH-1(T2)) | 1 | |
| 8 | 77235-ABW-900R | SET ACC. MOUNTING COVER R | 1 | |
| 8 | 77235-ABW-900U | SET ACC. MOUNTING COVER R | 1 | |
| 8 | 77235-ADR-000R | SET ACC. MOUNTING COVER R | 1 | |
| 8 | 77245-ADR-000R | SET ACC. MOUNTING COVER L | 1 | |
| 9 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 4 | |
| 10 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 2 | |
| 11 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 12 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 13 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
