OEM Part
OEM Part
16700-AAE-300
UNIT ASSY FUEL PUMP
Qty Required: 1
Ref #1 in Assembly
Part of Assembly

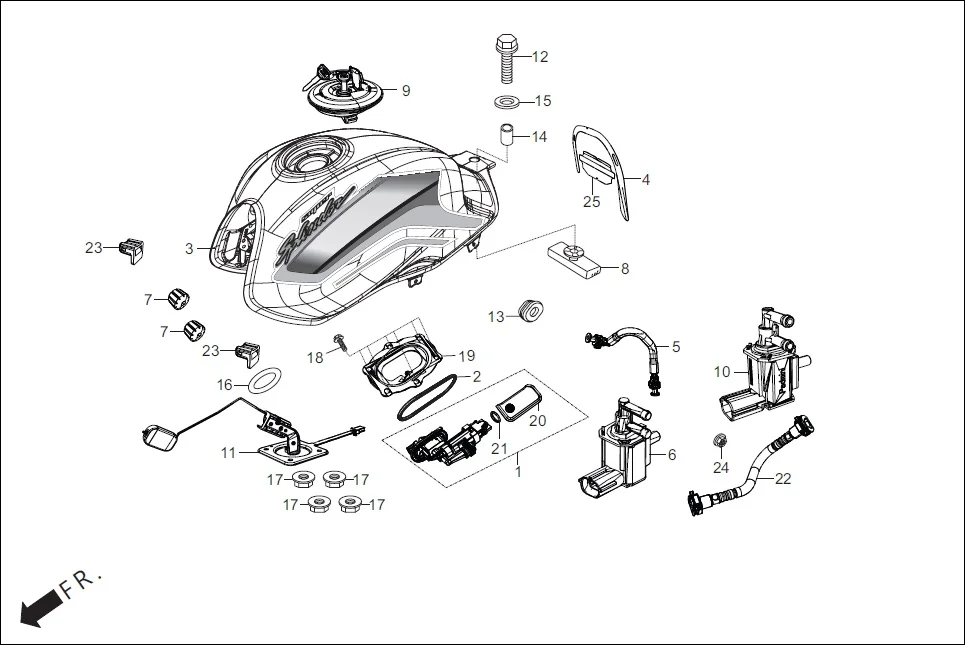

F-13
FUEL TANK
25 parts in this assembly
Assembly Diagram
Ref #1
Supported Vehicles21
H
HERO Super Splendor FI-BSVI (Feb, 2020)
H
HERO SPL + SPORTS BSVI OBD11(July,2024)
H
HERO SPLENDOR PLUS OBD IIB(Apr.,2025)
H
HERO SPLENDOR PLUS OBD2B(Apr., 2025)
H
HERO SPLENDOR PLUS(June,2024)
H
HERO SPLENDOR+ SPORTS (Sept,2023)
H
HERO SUPER SPLENDOR TECHNO OBDII(Feb.,2025)
H
HERO SUPER SPLENDOR TECHNO(Feb,2023)
Related Parts
17572-AAE-300
GASKET FUEL PUMP
17520-AAG-A00R
SET, FUEL TANK (BLACK) NH-1
17520-AAG-A00S
SET, FUEL TANK (CANDY BLAZING RED) R-195C
17520-AAG-A00T
SET, FUEL TANK (HEAVY GRAY ME.) NH-194M-U
17520-AAG-A00U
SET, FUEL TANK (METALLIC NEXUS BLUE) BL(BR)-013M(G)
17520-AAG-A00X
SET, FUEL TANK (BLACK NH-1 (TYPE-2))
