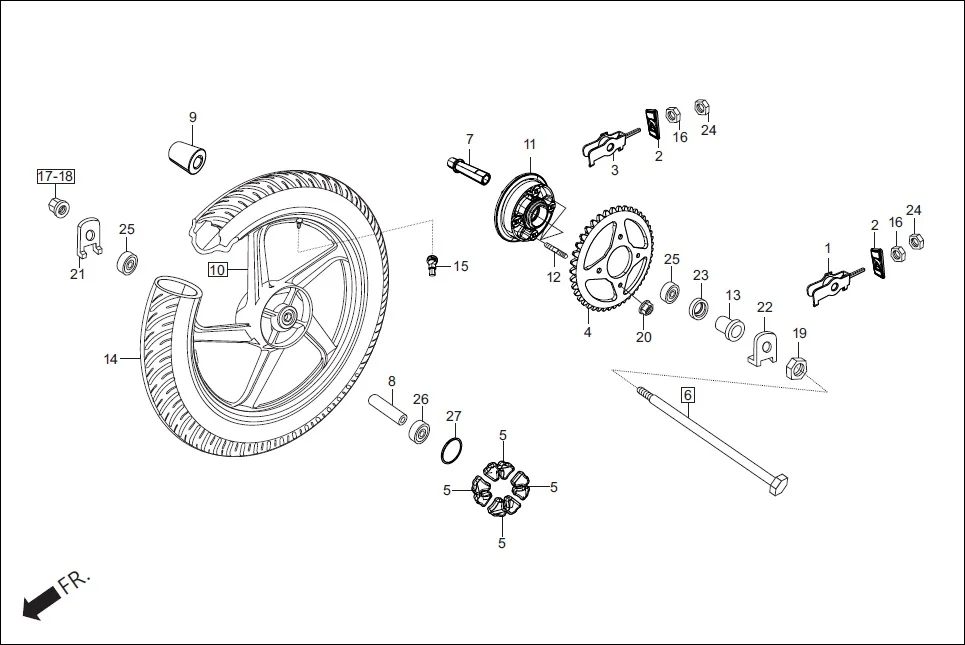

F-9 - REAR WHEEL
Hero Super Splendor iBS (Feb, 2019) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40543-KTR-900 | ADJUSTER COMP., L CHAIN | 1 | |
| 2 | 40546-KPG-T00 | CAP SWINGARM, END | 2 | |
| 3 | 40546-KTR-900 | ADJUSTER COMP., R CHAIN | 1 | |
| 4 | 41201-AAJ-H00 | SPROCKET, FINAL DRIVEN (44T) | 1 | |
| 5 | 41241-AAN-410 | DAMPER, REAR WHEEL | 4 | |
| 6 | 42301-KTR-700 | AXLE, REAR WHEEL | 1 | |
| 7 | 42303-KTR-900 | SLEEVE, REAR WHEEL | 1 | |
| 8 | 42304-KTC-900 | COLLAR, RR.AXLE SLEEVE | 1 | |
| 9 | 42313-198-900 | COLLAR, RR. BRAKE PANEL SIDE | 1 | |
| 10 | 42601-ABA-202 | WHEEL COMP. RR | 1 | |
| 11 | 42611-KTC-900 | FLANGE, FINAL DRIVEN | 1 | |
| 12 | 42615-198-900 | BOLT, STUD., 8 X 42 | 4 | |
| 13 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 14 | 42711-AAF-00099 | TYRE, REAR | 1 | |
| 14 | 42711-AAF-00199 | TIRE, RR | 1 | |
| 15 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 16 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 17 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 18 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 19 | 90307-001-000 | NUT ,RR. AXLE SLEEVE | 1 | |
| 20 | 90308-KWA-940 | NUT PT. 8MM | 4 | |
| 21 | 90558-KTR-900 | WASHER, RR AXLE (RIGHT) | 1 | |
| 22 | 90559-KTR-900 | WASHER, RR AXLE (LEFT) | 1 | |
| 23 | 90753-029-000 | OIL SEAL, 27 X 40 X 6 | 1 | |
| 24 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 25 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 26 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 | |
| 27 | 91304-704-000 | O-RING 42 MM | 1 | |
