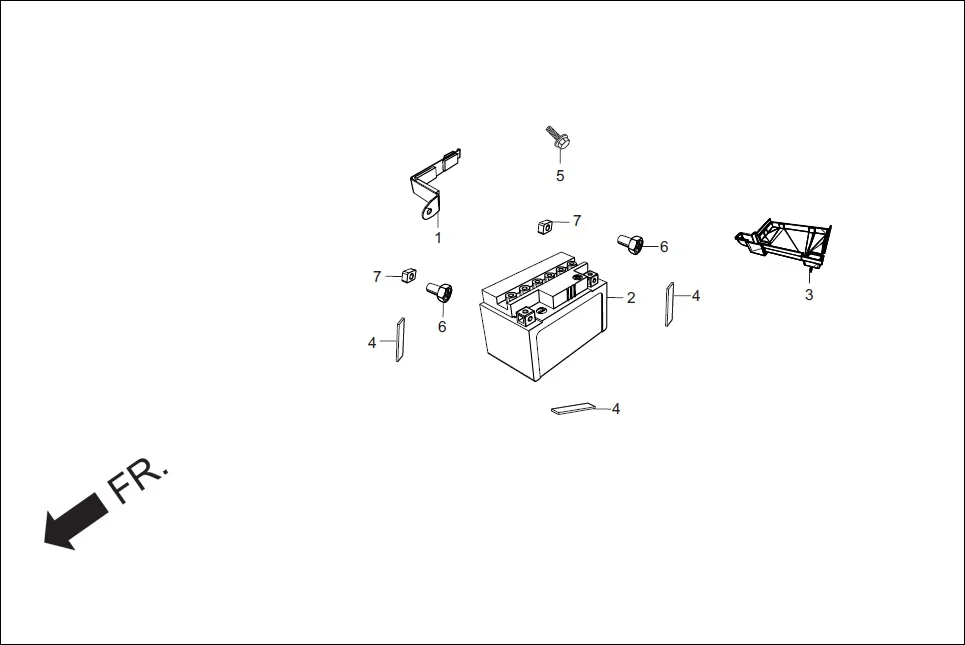

F-22A - BATTERY ASSY.
Hero Super Splendor iBS (Feb, 2019) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17214-KWA-840 | BAND, BATTERY | 1 | |
| 2 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 3 | 50325-AAC-220 | BOX UPPER, BATTERY | 1 | |
| 4 | 83407-KTR-940 | RUBBER, BATTERY | 3 | |
| 5 | 90101-KWA-830 | BOLT FLANGE 6X18 | 1 | |
| 6 | 90122-KRY-971 | BOLT, BATTERY TERMINAL | 2 | |
| 7 | 90306-KRY-971 | NUT, BATTERY TERMINAL | 2 | |
