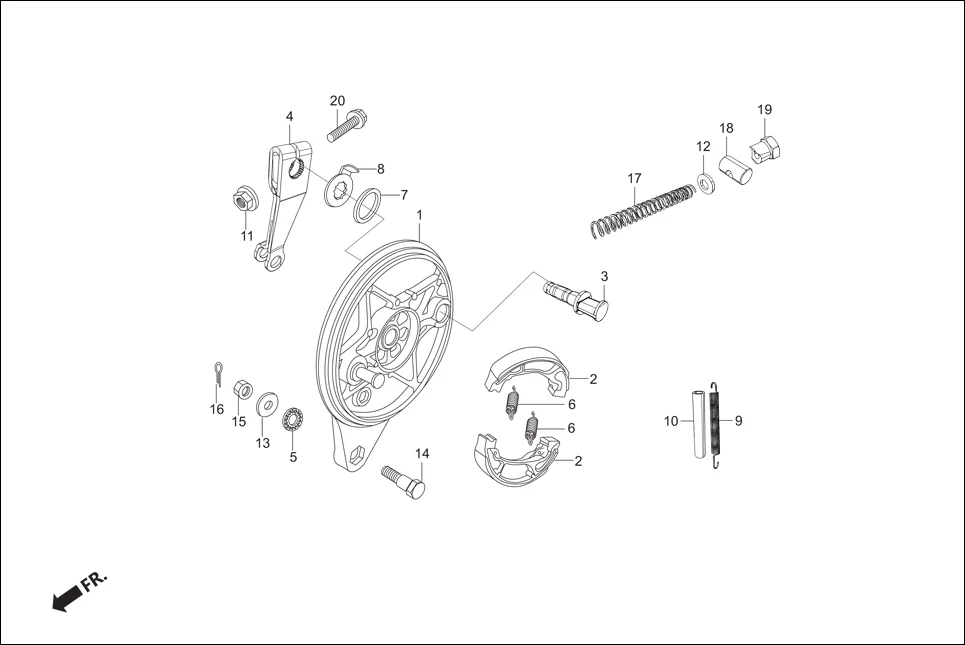

F-8 - REAR BRAKE PANEL
Hero Super Splendor iBS (Feb, 2019) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43100-KTR-700 | PANEL COMP., RR. BRAKE | 1 | |
| 2 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 3 | 43141-KTC-900 | CAM, REAR BRAKE | 1 | |
| 4 | 43410-AAH-F00 | ARM, RR. BRAKE | 1 | |
| 5 | 43434-286-000 | RUBBER, STOPPER ARM CUSHION | 1 | |
| 6 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 7 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 8 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 9 | 46518-AAH-F00 | SPRING, BRAKE PEDAL | 1 | |
| 10 | 46515-KB9-000 | TUBE , BRAKE PEDAL SPRING | 1 | |
| 11 | 90301-473-000 | NUT,U 6MM | 1 | |
| 12 | 90502-198-900 | WASHER , BRAKE ROD | 1 | |
| 13 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 14 | 92811-10000 | BOLT A BRAKE STOPPER | 1 | |
| 15 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 16 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 17 | 95014-73100 | SPRING A BRAKE ROD | 1 | |
| 18 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 19 | 95015-42000 | NUT B ADJUST | 1 | |
| 20 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
