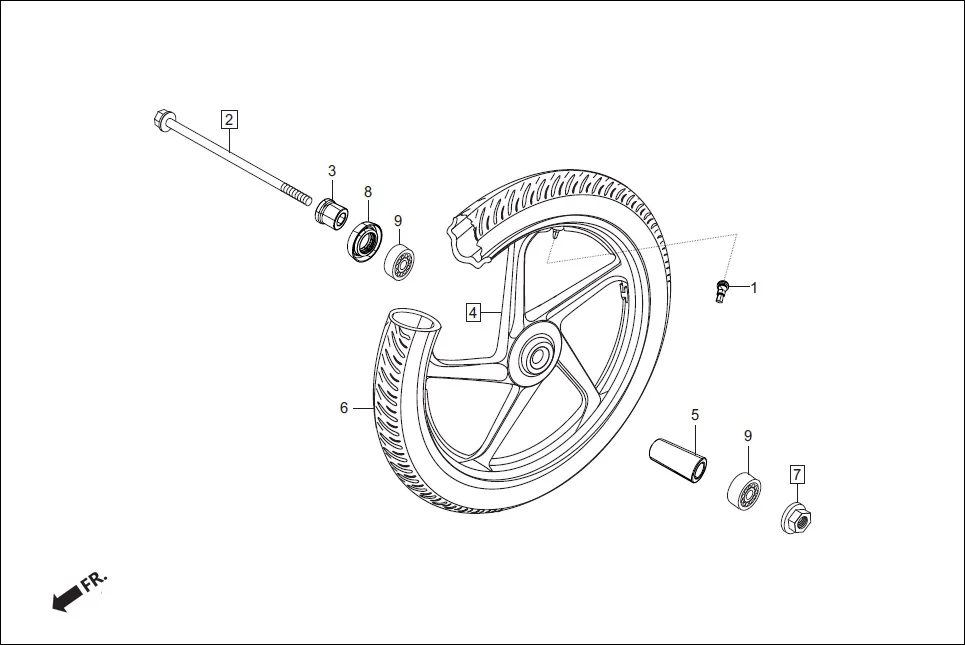

F-7 - FRONT WHEEL
Hero Super Splendor iBS (Feb, 2019) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 2 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 3 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | K44446AAFB000S | KIT, WHEEL COMP. FRONT | 1 | |
| 5 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 6 | 44711-AAF-00099 | TYRE FRONT | 1 | |
| 6 | 44711-KRY-971 | TYRE,FR | 1 | |
| 6 | 44711-AAF-00199 | TYRE, FR | 1 | |
| 7 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 9 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
