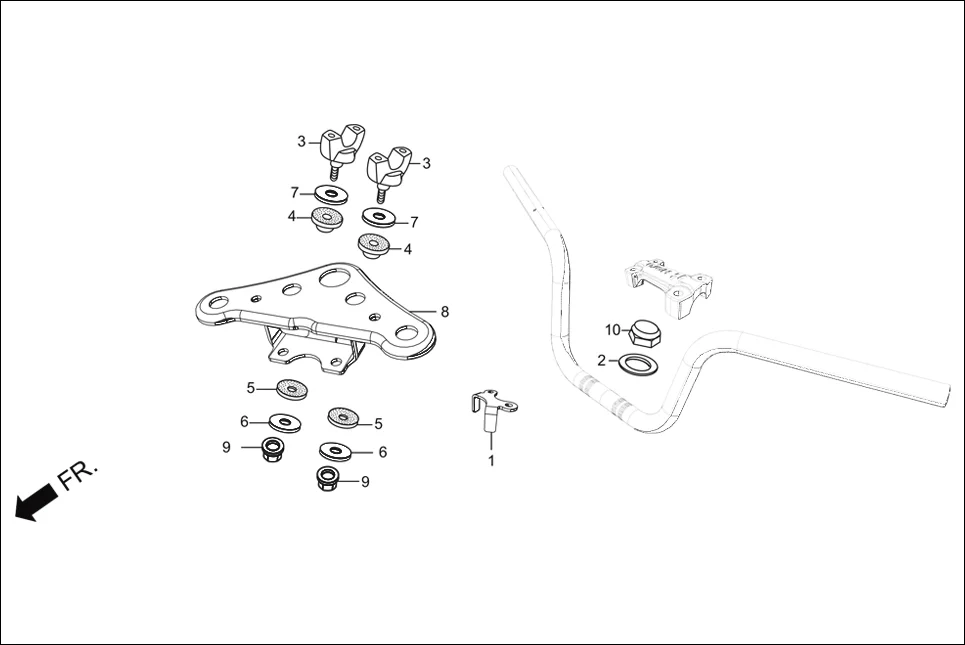

F-6A - TOP BRIDGE
Hero Super Splendor iBS (Feb, 2019) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35106-KTC-900 | COVER, COMB. SWITCH | 1 | |
| 2 | 90503-KTR-900 | WASHER, STEERING STEM | 1 | |
| 3 | 53132-124-000 | HOLDER, HANDLE PIPE UNDER | 2 | |
| 4 | 53133-198-900 | RUBBER, HANDLE CUSHION UPPER | 2 | |
| 5 | 53134-028-000 | RUBBER, HANDLE CUSHION UNDER | 2 | |
| 6 | 53135-198-900 | WASHER, HANDLE CUSHION | 2 | |
| 7 | 53136-198-900 | PLATE, HANDLE CUSHION | 2 | |
| 8 | 53230-KTR-940 | BRIDGE COMP., FORK TOP | 1 | |
| 9 | 90304-AAH-F00 | NYLOCK NUT 10 MM | 2 | |
| 10 | 90304-KSP-900 | NUT, STEERING STEM | 1 | |
