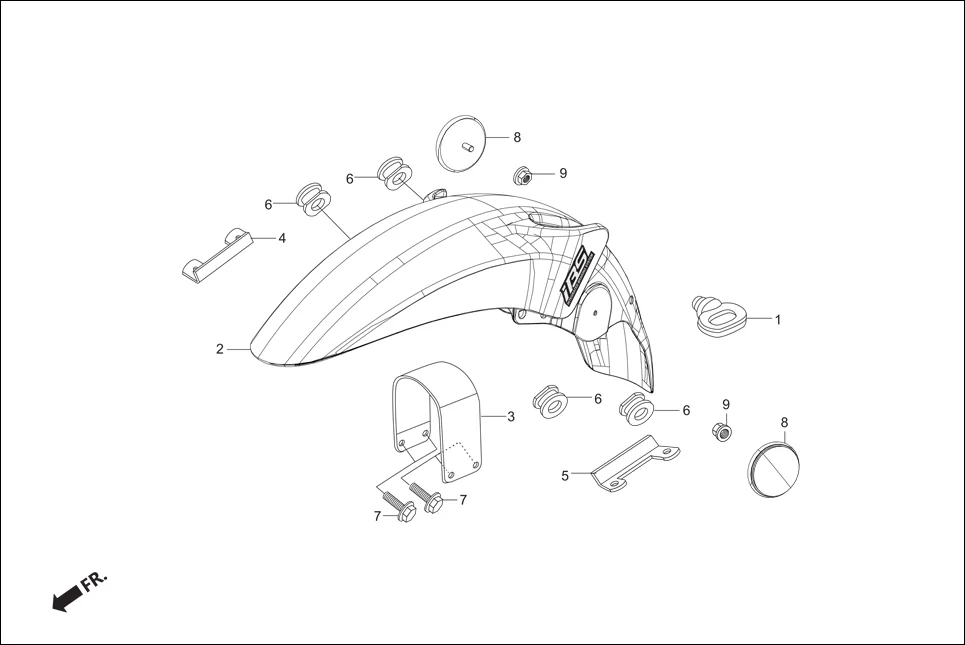

F-5 - HANDLE PIPE/TOP BRIDGE
Hero Super Splendor iBS (Feb, 2019) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KCC-900 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61000-AAG-900R | SET ILLUST FR FENDER (BLACK, NH-1) | 1 | |
| 2 | 61000-AAG-900U | SET ILLUST FR FENDER (CANDY BLAZING RED) | 1 | |
| 2 | 61000-AAG-900V | SET ILLUST FR FENDER (EBONY GRAY ME) | 1 | |
| 3 | 61102-KTC-900 | STAY, FRONT FENDER | 1 | |
| 4 | 61103-KTR-940 | BRKT. FR. FENDER R | 1 | |
| 5 | 61104-KTR-940 | BRKT. FR. FENDER L | 1 | |
| 6 | 61105-KTC-900 | RUBBER, FRONT FENDER MOUNTING | 4 | |
| 7 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 8 | 33741-KRY-861 | REFLEX, REFLECTOR | 2 | |
| 9 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
