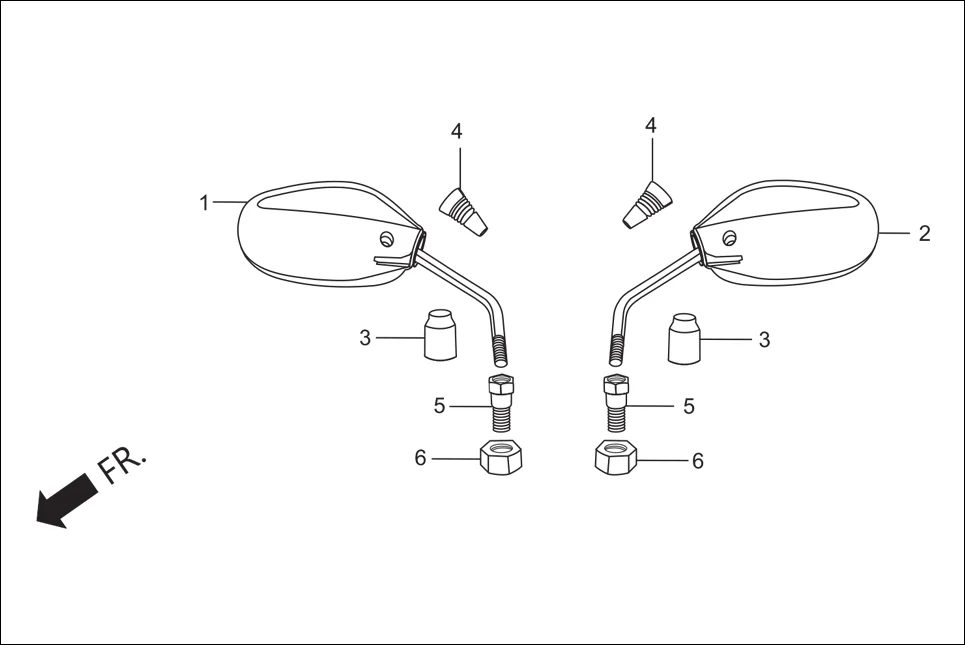

F-3A - MIRROR ASSY.
Hero Super Splendor iBS (Feb, 2019) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-AAN-H01 | MIRROR ASSY R BACK | 1 | |
| 2 | 88120-AAN-H01 | MIRROR ASSY L BACK | 1 | |
| 3 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 4 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
| 5 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 6 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 7 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
