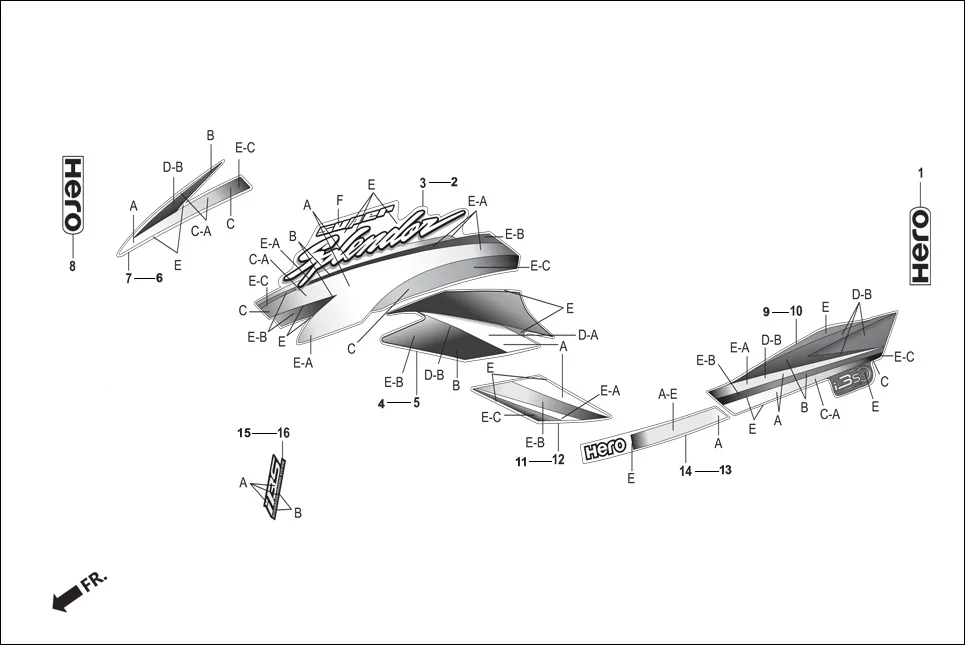

F-27 - STRIPES/MARKS
Hero Super Splendor iBS (Feb, 2019) · 62 parts
Parts in This Assembly (62)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77238-AAG-300 | MARK HERO CENTRE RR COWL UPR. | 1 | |
| 2 | 86171-AAG-300R | STRIPE R FUEL TANK (TYPE-1) | 1 | |
| 2 | 86171-AAG-300S | STRIPE R FUEL TANK (TYPE-2) | 1 | |
| 2 | 86171-AAG-300T | STRIPE R FUEL TANK (TYPE-3) | 1 | |
| 2 | 86171-AAG-300U | STRIPE R FUEL TANK (TYPE-4) | 1 | |
| 2 | 86171-AAG-300V | STRIPE R FUEL TANK (TYPE-5) | 1 | |
| 3 | 86172-AAG-300R | STRIPE L FUEL TANK (TYPE-1) | 1 | |
| 3 | 86172-AAG-300S | STRIPE L FUEL TANK (TYPE-2) | 1 | |
| 3 | 86172-AAG-300T | STRIPE L FUEL TANK (TYPE-3) | 1 | |
| 3 | 86172-AAG-300U | STRIPE L FUEL TANK (TYPE-4) | 1 | |
| 3 | 86172-AAG-300V | STRIPE L FUEL TANK (TYPE-5) | 1 | |
| 4 | 86173-AAG-300R | STRIPE B R FUEL TANK (TYPE-1) | 1 | |
| 4 | 86173-AAG-300S | STRIPE B R FUEL TANK (TYPE-2) | 1 | |
| 4 | 86173-AAG-300T | STRIPE B R FUEL TANK (TYPE-3) | 1 | |
| 4 | 86173-AAG-300U | STRIPE B R FUEL TANK (TYPE-4) | 1 | |
| 4 | 86173-AAG-300V | STRIPE B R FUEL TANK (TYPE-5) | 1 | |
| 5 | 86174-AAG-300R | STRIPE B L FUEL TANK (TYPE-1) | 1 | |
| 5 | 86174-AAG-300S | STRIPE B L FUEL TANK (TYPE-2) | 1 | |
| 5 | 86174-AAG-300T | STRIPE B L FUEL TANK (TYPE-3) | 1 | |
| 5 | 86174-AAG-300U | STRIPE B L FUEL TANK (TYPE-4) | 1 | |
| 5 | 86174-AAG-300V | STRIPE B L FUEL TANK (TYPE-5) | 1 | |
| 6 | 86611-AAG-300R | STRIPE R FR COWL (TYPE-1) | 1 | |
| 6 | 86611-AAG-300S | STRIPE R FR COWL (TYPE-2) | 1 | |
| 6 | 86611-AAG-300T | STRIPE R FR COWL (TYPE-3) | 1 | |
| 6 | 86611-AAG-300U | STRIPE R FR COWL (TYPE-4) | 1 | |
| 6 | 86611-AAG-300V | STRIPE R FR COWL (TYPE-5) | 1 | |
| 7 | 86612-AAG-300R | STRIPE L FR COWL (TYPE-1) | 1 | |
| 7 | 86612-AAG-300S | STRIPE L FR COWL (TYPE-2) | 1 | |
| 7 | 86612-AAG-300T | STRIPE L FR COWL (TYPE-3) | 1 | |
| 7 | 86612-AAG-300U | STRIPE L FR COWL (TYPE-4) | 1 | |
| 7 | 86612-AAG-300V | STRIPE L FR COWL (TYPE-5) | 1 | |
| 8 | 86641-AAG-300 | MARK HERO | 1 | |
| 9 | 86771-AAG-300R | STRIPE R BODY COWL (TYPE-1) | 1 | |
| 9 | 86771-AAG-300S | STRIPE R BODY COWL (TYPE-2) | 1 | |
| 9 | 86771-AAG-300T | STRIPE R BODY COWL (TYPE-3) | 1 | |
| 9 | 86771-AAG-300U | STRIPE R BODY COWL (TYPE-4) | 1 | |
| 9 | 86771-AAG-300V | STRIPE R BODY COWL (TYPE-5) | 1 | |
| 10 | 86772-AAG-300R | STRIPE L BODY COWL (TYPE-1) | 1 | |
| 10 | 86772-AAG-300S | STRIPE L BODY COWL (TYPE-2) | 1 | |
| 10 | 86772-AAG-300T | STRIPE L BODY COWL (TYPE-3) | 1 | |
| 10 | 86772-AAG-300U | STRIPE L BODY COWL (TYPE-4) | 1 | |
| 10 | 86772-AAG-300V | STRIPE L BODY COWL (TYPE-5) | 1 | |
| 11 | 86831-AAG-300R | STRIPE A R SIDE COVER (TYPE-1) | 1 | |
| 11 | 86831-AAG-300S | STRIPE A R SIDE COVER (TYPE-2) | 1 | |
| 11 | 86831-AAG-300T | STRIPE A R SIDE COVER (TYPE-3) | 1 | |
| 11 | 86831-AAG-300U | STRIPE A R SIDE COVER (TYPE-4) | 1 | |
| 11 | 86831-AAG-300V | STRIPE A R SIDE COVER (TYPE-5) | 1 | |
| 12 | 86832-AAG-300R | STRIPE A L SIDE COVER (TYPE-1) | 1 | |
| 12 | 86832-AAG-300S | STRIPE A L SIDE COVER (TYPE-2) | 1 | |
| 12 | 86832-AAG-300T | STRIPE A L SIDE COVER (TYPE-3) | 1 | |
| 12 | 86832-AAG-300U | STRIPE A L SIDE COVER (TYPE-4) | 1 | |
| 12 | 86832-AAG-300V | STRIPE A L SIDE COVER (TYPE-5) | 1 | |
| 13 | 86833-AAG-300R | STRIPE B R SIDE COVER (TYPE-1) | 1 | |
| 13 | 86833-AAG-300U | STRIPE B R SIDE COVER (TYPE-4) | 1 | |
| 13 | 86833-AAG-300V | STRIPE B R SIDE COVER (TYPE-5) | 1 | |
| 14 | 86834-AAG-300R | STRIPE B L SIDE COVER (TYPE-1) | 1 | |
| 14 | 86834-AAG-300U | STRIPE B L SIDE COVER (TYPE-4) | 1 | |
| 14 | 86834-AAG-300V | STRIPE B L SIDE COVER (TYPE-5) | 1 | |
| 15 | 86780-AAG-900R | MARK IBS FR FENDER RH (TYPE-1) | 1 | |
| 15 | 86780-AAG-900S | MARK IBS FR FENDER RH (TYPE-2) | 1 | |
| 16 | 86880-AAG-900R | MARK IBS FR FENDER LH (TYPE-1) | 1 | |
| 16 | 86880-AAG-900S | MARK IBS FR FENDER LH (TYPE-2) | 1 | |
