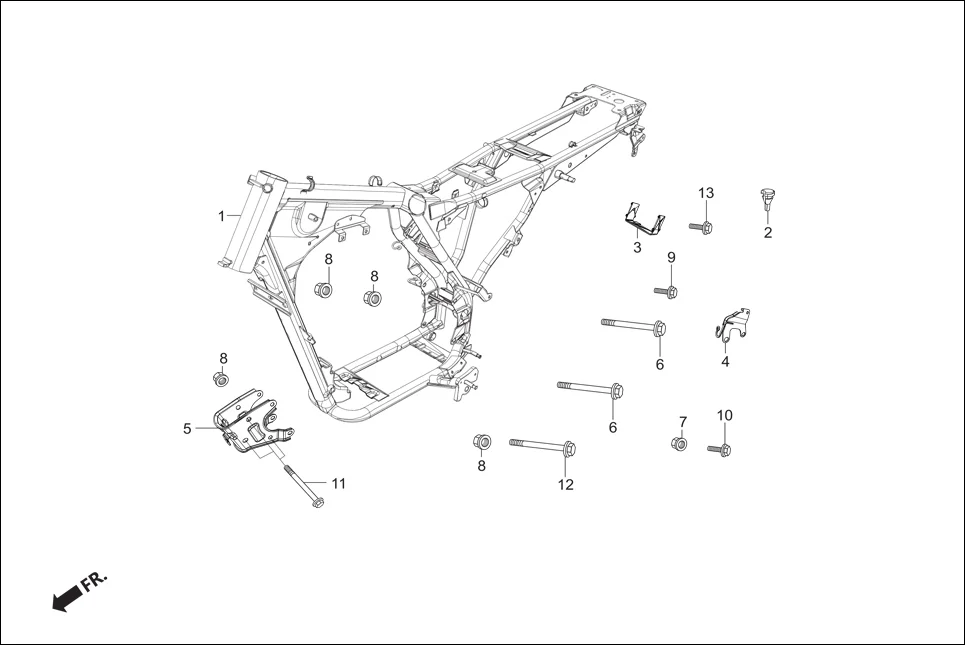

F-23 - FRAME BODY
Hero Super Splendor iBS (Feb, 2019) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-AAG-900 | FRAME BODY COMP | 1 | |
| 2 | 50137-AAR-000 | PLUG CABLE RETENTION | 1 | |
| 3 | 50251-AAN-410 | BRACKET (I3S) | 1 | |
| 4 | 50350-AAN-410 | STAY VALVE ASSY AIR SUCTION COMP | 1 | |
| 5 | 5035A-AAN-410 | FRONT ENG HANGER COMP | 1 | |
| 6 | 90019-AAG-300 | BOLT FLANGE 10 X 110 | 2 | |
| 7 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 8 | 94050-10000 | NUT, FLANGE, 10MM | 6 | |
| 9 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 10 | 95801-08075-00 | BOLT FLANGE, 8X75 | 1 | |
| 11 | 95801-10075-08 | BOLT FLANGE 10X75 | 3 | |
| 12 | 95801-10095-00 | BOLT FLANGE 10X95 | 1 | |
| 13 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
