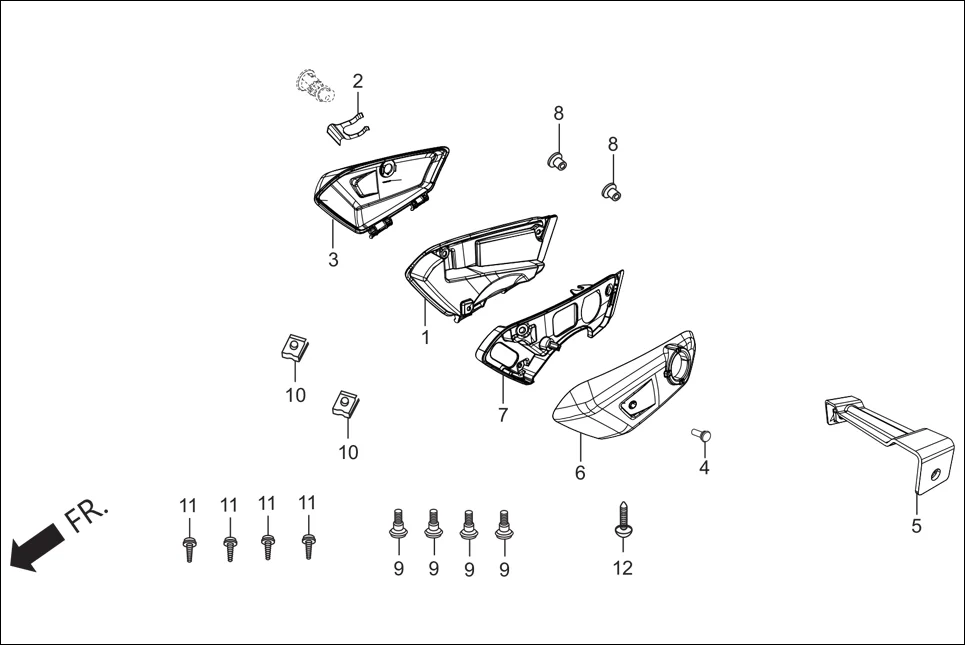

F-1B - FR. COVER (UTILITY BOX ASSY.)
Hero Super Splendor iBS (Feb, 2019) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83517-AAG-300 | UTILITY BOX | 1 | |
| 2 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 3 | 83512-AAG-300 | COVER R UTILITY BOX | 1 | |
| 4 | 83513-AAG-300 | CAP HOLE | 1 | |
| 5 | 83514-AAG-300 | STAY UTILITY BOX | 1 | |
| 6 | 83515-AAG-300 | COVER L UTILITY BOX | 1 | |
| 7 | 83520-AAG-300 | COVER L INNER UTILITY BOX | 1 | |
| 8 | 84706-163-670 | COLLAR TAIL LIGHT MTG | 2 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 10 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 11 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 12 | 93903-24310 | SCREW, TAPPING, 4X12 | 1 | |
