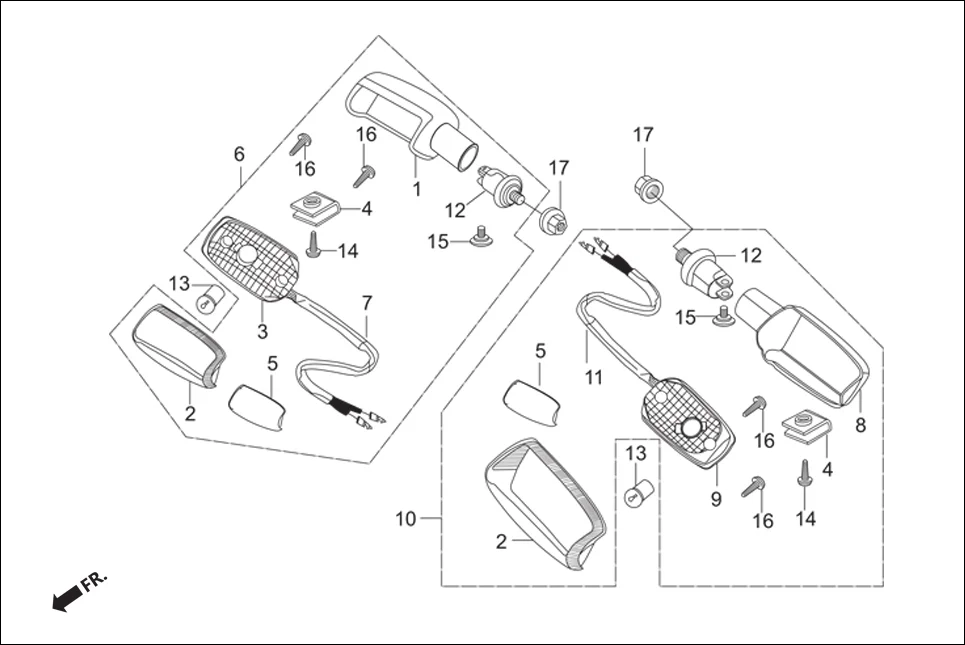

F-19 - FR. WINKERS
Hero Super Splendor iBS (Feb, 2019) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33401-KCC-730 | BASE, WINKER R FR./L RR | 1 | |
| 1 | 33401-AAT-002 | BASE WINKER R | 1 | |
| 2 | 33402-KCC-690Z | LENS WINKER | 2 | |
| 2 | 33402-AAT-002 | LENS | 2 | |
| 3 | 33405-KCC-730A | REFLECTOR WINKER R. FR. | 1 | |
| 4 | 33407-KCC-900 | SPECIAL NUT | 2 | |
| 5 | 33408-KCC-730 | PACKING, LENS | 2 | |
| 6 | 3340A-KTC-A21 | WINKER ASSY., R. FR. (W/O BULB) | 1 | |
| 6 | 3340B-AAG-601 | WINKER ASSY R FR | 1 | |
| 7 | 33415-KTC-A21 | SOCKET COMP., R. FR. WINKER | 1 | |
| 7 | 33415-AAG-601 | SOCKET COMP R WINKER | 1 | |
| 8 | 33451-KCC-730 | BASE, WINKER L FR./R RR | 1 | |
| 8 | 33451-AAT-002 | BASE WINKER L | 1 | |
| 9 | 33455-KCC-730A | REFLECTOR L. FR. | 1 | |
| 10 | 3345A-KTC-A21 | WINKER ASSY. L. FRONT (W/O BULB) | 1 | |
| 10 | 3345B-AAG-601 | WINKER ASSY,L FR | 1 | |
| 11 | 33465-KTC-A21 | SOCKET COMP., L. WINKER | 1 | |
| 11 | 33465-AAG-601 | SOCKET COMP L WINKER | 1 | |
| 12 | 33491-KAF-000 | STAY COMP., WINKER | 2 | |
| 13 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 14 | 90380-MB2-000 | SCREW, SPECIAL, 6 X 8 | 2 | |
| 15 | 93700-04012-1G | SCREW OVAL 4 X 12 | 2 | |
| 16 | 93901-22310 | SCREW, TAPPING, 3 X 12 | 4 | |
| 17 | 94050-10000 | NUT, FLANGE, 10MM | 2 | |
