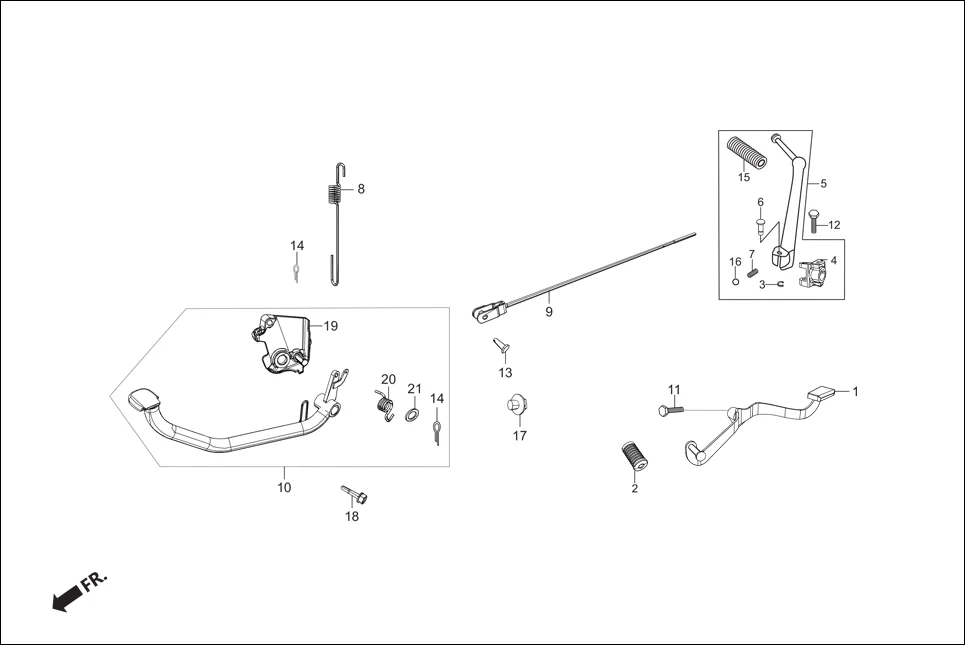

F-15A - PEDAL GEAR CHANGE/ KICK STARTER / PEDAL BRAKE
Hero Super Splendor iBS (Feb, 2019) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-AAG-300 | PEDAL GEAR CHANGE | 1 | |
| 2 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 28293-KAG-900 | CLIP, KICK STARTER | 1 | |
| 4 | 28302-KTR-840 | JOINT KICK ARM | 1 | |
| 5 | 2830A-KTR-840 | ARM ASSY. COMP. KICK STATER | 1 | |
| 6 | 28321-KTC-900 | PIN, KICK STARTER | 1 | |
| 7 | 28333-124-000 | SPRING, KICK STARTER STOPPER | 1 | |
| 8 | 35357-AAH-F00 | SPRING, STOP SWITCH | 1 | |
| 9 | 43451-AAG-900 | ROD COMP RR BRAKE | 1 | |
| 10 | 46544-AAG-900 | RR BRAKE PEDAL & ROD SUB ASSY | 1 | |
| 11 | 92101-06020-0A | BOLT HEX.6X20 | 1 | |
| 12 | 92101-08032-0A | BOLT HEX., 8 X 32 | 1 | |
| 13 | 95015-AAH-F00 | PIN, CJOINT | 1 | |
| 14 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 15 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 16 | 96211-08000 | BALL STEEL 8 MM | 1 | |
| 17 | 90118-AAG-900 | BOLT WASHER 6X6 | 1 | |
| 19 | 46513-AAG-900 | CASING CBS | 1 | |
| 20 | 46515-AAH-F00 | SPRING LEVER DELAY | 1 | |
| 21 | 90545-AAH-F00 | WASHER CASING PIVOT | 1 | |
| 22 | 95701-08045-00 | BOLT, FLANGE 8 X45 | 1 | |
