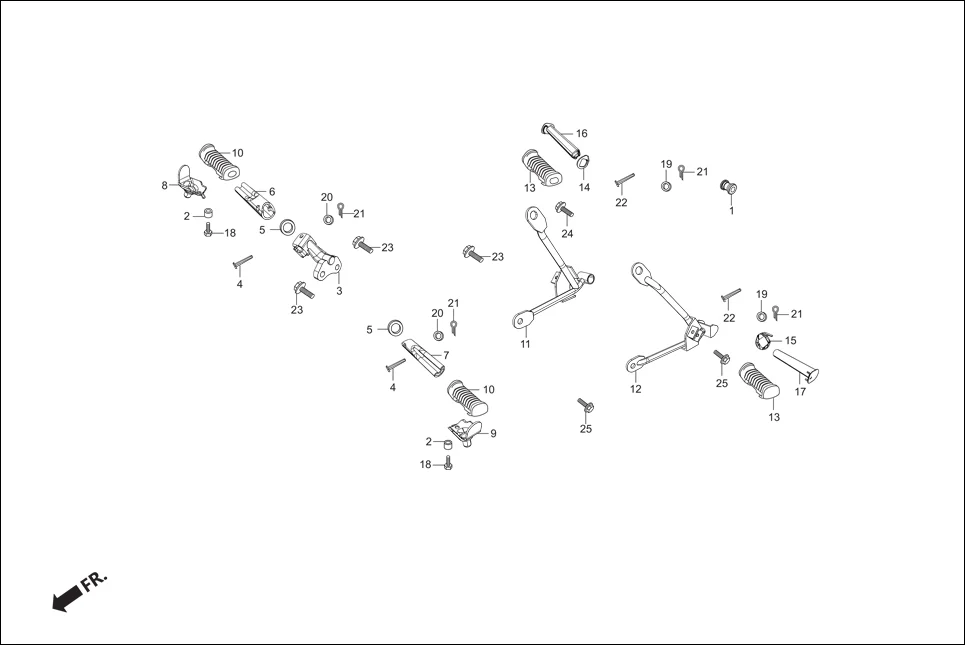

F-15 - STEP ASSY.
Hero Super Splendor iBS (Feb, 2019) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 2 | 37243-323-000 | COLLAR , METER SET | 2 | |
| 3 | 50160-AAN-410 | BRKT COMP R STEP | 1 | |
| 4 | 50603-AAG-300 | PIN MAIN STEP BAR JOINT | 2 | |
| 5 | 50614-413-000 | WASHER, MAIN STEP | 2 | |
| 6 | 50618-AAG-300 | BAR R STEP | 1 | |
| 7 | 50619-AAG-300 | BAR L STEP | 1 | |
| 8 | 50620-KTC-900 | STOPPER, R STEP RUBBER | 1 | |
| 9 | 50621-KTC-900 | STOPPER, L RUBBER STEP | 1 | |
| 10 | 50661-425-670 | RUBBER STEP | 2 | |
| 11 | 50701-AAG-300 | BRKT COMP R P STEP | 1 | |
| 12 | 50702-AAG-300 | BRKT COMP L P STEP | 1 | |
| 13 | 50710-461-770 | RUBBER, STEP PILLION | 2 | |
| 14 | 50712-AAG-300 | WASHER R PILLION STEP | 1 | |
| 15 | 50713-AAG-300 | WASHER L PILLION STEP | 1 | |
| 16 | 50715-KCC-900 | BAR R PILLION STEP | 1 | |
| 17 | 50718-KCC-900 | BAR L PILLION STEP | 1 | |
| 18 | 92000-06016-0A | BOLT, HEX., 6 X 16 | 2 | |
| 19 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 20 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 21 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 4 | |
| 22 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 23 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 3 | |
| 24 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 1 | |
| 25 | 95701-10045-07 | BOLT FLANGE, 10 X 45 | 2 | |
