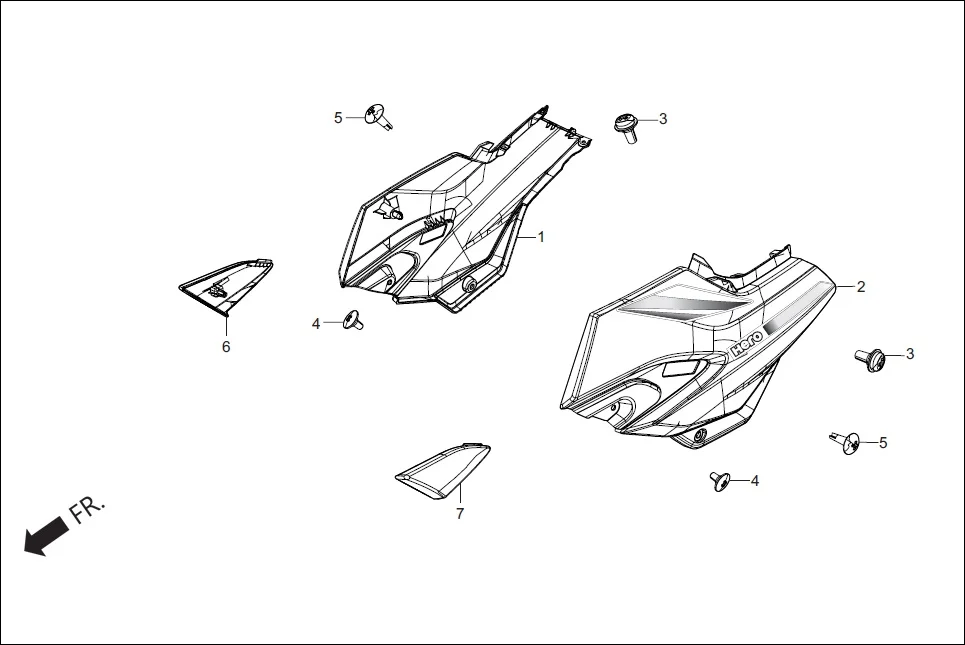

F-12 - SIDE COVER
Hero Super Splendor iBS (Feb, 2019) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-AAG-300R | SET, R SIDE COVER (BLACK-1) | 1 | |
| 1 | 83500-AAG-300S | SET, R SIDE COVER (BLACK-2) | 1 | |
| 1 | 83500-AAG-300T | SET, R SIDE COVER (BLACK-3) | 1 | |
| 1 | 83500-AAG-300U | SET, R SIDE COVER (CANDY BLAZING RED) | 1 | |
| 1 | 83500-AAG-300V | SET, R SIDE COVER (EBONY GRAY ME.) | 1 | |
| 2 | 83600-AAG-300R | SET, L SIDE COVER(BLACK-1) | 1 | |
| 2 | 83600-AAG-300S | SET, L SIDE COVER(BLACK-2) | 1 | |
| 2 | 83600-AAG-300T | SET, L SIDE COVER(BLACK-3) | 1 | |
| 2 | 83600-AAG-300U | SET, L SIDE COVER(CANDY BLAZING RED) | 1 | |
| 2 | 83600-AAG-300V | SET, L SIDE COVER(EBONY GRAY ME. ) | 1 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 | |
| 5 | 93903-24310 | SCREW, TAPPING, 4X12 | 2 | |
| 6 | 83098-AAG-3000 | COVER FRONT R | 1 | |
| 7 | 83099-AAG-3000 | COVER FRONT L | 1 | |
