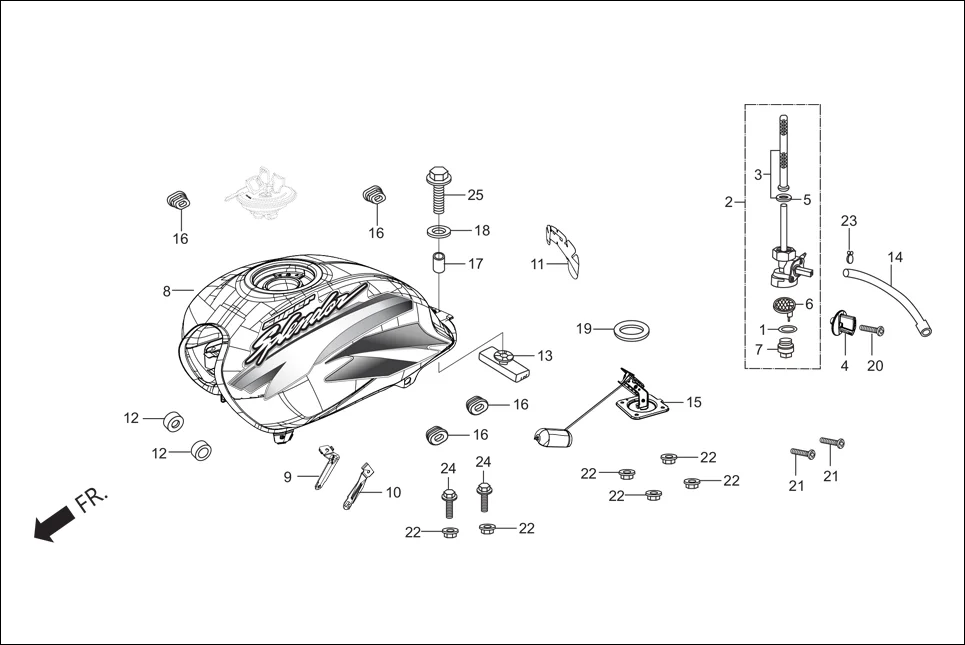

F-11 - FUEL TANK
Hero Super Splendor iBS (Feb, 2019) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16173-001-000 | O- RING | 1 | |
| 2 | 16950-AAG-30099 | COCK ASSY FUEL | 1 | |
| 3 | 16952-AAG-00099 | SET FUEL STRAINER SCREEN | 1 | |
| 4 | 16955-AAG-500 | LEVER FUEL COCK | 1 | |
| 5 | 16958-397-770 | O-RING | 1 | |
| 6 | 16959-HB3-000 | FILTER, CUP | 1 | |
| 7 | 16967-MA2-770 | CUP, FUEL STRAINER | 1 | |
| 8 | 17505-AAG-300R | SET FUEL TANK (BLACK-1) NH-1 | 1 | |
| 8 | 17505-AAG-300S | SET FUEL TANK (BLACK-2) NH-1 | 1 | |
| 8 | 17505-AAG-300T | SET FUEL TANK (BLACK-3) NH-1 | 1 | |
| 8 | 17505-AAG-300U | SET FUEL TANK (CANDY BLAZING RED) | 1 | |
| 8 | 17505-AAG-300V | SET FUEL TANK (EBONY GRAY ME.) | 1 | |
| 9 | 17517-AAG-300 | STAY L, U BOX RR | 1 | |
| 10 | 17518-AAG-300 | STAY R, U BOX RR | 1 | |
| 11 | 17521-AAG-300 | TANK FILM PROTECTOR | 1 | |
| 12 | 17611-KRM-860 | CUSHION, FR. FUEL TANK | 2 | |
| 13 | 17613-KTR-A00 | CUSHION, REAR TANK | 1 | |
| 14 | 17681-AAN-410 | TUBE FUEL | 1 | |
| 15 | 37800-AAG-500 | UNIT ASSY FUEL | 1 | |
| 16 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 17 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 18 | 90325-KCC-900 | WASHER, PLAIN, 8 MM | 1 | |
| 19 | 91305-443-740 | O RING, 39.5 X 5 | 1 | |
| 20 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 21 | 93891-04012-07 | SCREW WASH 4X12 | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 6 | |
| 23 | 95002-02080 | CLIP, TUBE | 1 | |
| 24 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 25 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
