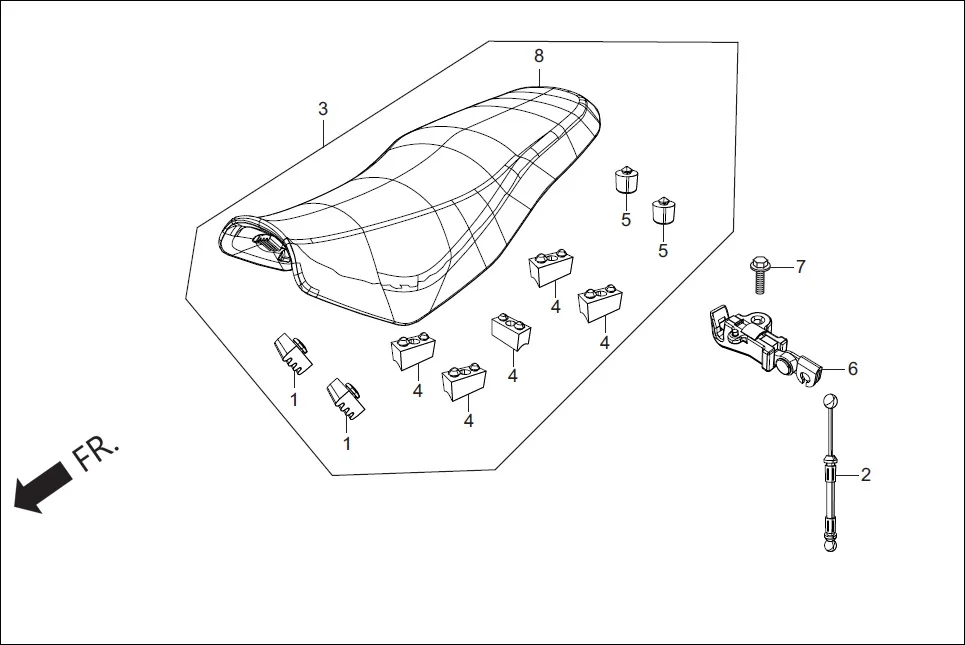

F-10 - SEAT ASSY.
Hero Super Splendor iBS (Feb, 2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 2 | |
| 2 | 77156-AAG-300 | CABLE SEAT LOCK | 1 | |
| 3 | 77200-AAG-300 | SEAT ASSY DOUBLE | 1 | |
| 4 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 5 | |
| 5 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 2 | |
| 6 | 77220-KY6-000 | HOOK, SEAT CATCH | 1 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 8 | 77200-AAG-300021 | SEAT COVER | 1 | |
