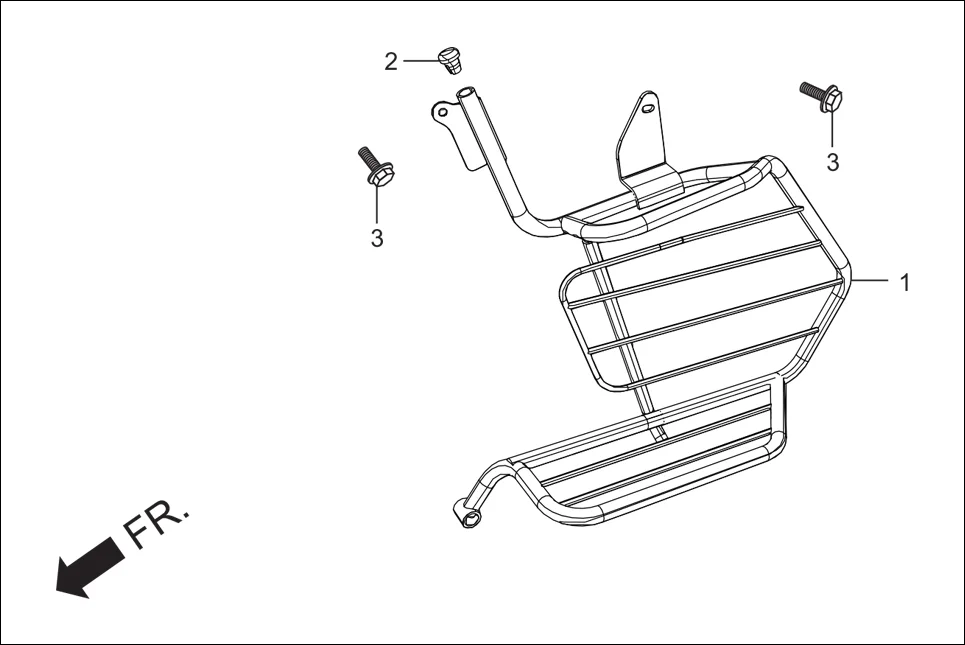

F-25 GUARD SARI assembly diagram for Hero Super Splendor (Nov, 2017)

Parts in This Assembly (3)

Ref #Part NumberDescriptionQty
151103-AAG-300GUARD SARI1
251106-AAG-300CAP GUARD SARI1
395701-08016-00BOLT, FLANGE, 8X162
